Update Programming Engine Control Module To Address DTCS P0300-P0304, P0420 And P0441 (GROUP 01, NO. 09-10)

Publication date: 2009-04-15
Reference number: GROUP 01, NO. 09-10
Supersedes refnos: 2010348, GROUP 01, NO. 03-04, GROUP 01, NO. 05-08, GROUP 01, NO. 06-26, GROUP 01, NO. 09-06

UPDATE PROGRAMMING ENGINE CONTROL MODULE TO ADDRESS DTCS P0300-P0304, P0420 AND P0441

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 09-10 (2010348), Date of Issue: April 15, 2009

VOLKSWAGEN:	(A4) Jetta, Jetta Wagon, GTI01
GROUP:	01 - On-Board Diagnostic

Superceded Bulletin(s): GROUP 01, NO. 09-06, Date of Issue: April 8, 2009

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
(A4) Jetta, Jetta Wagon, GTI	2001-2005	1.8L (AWD, AWP, AWW)	All	All	All

CONDITION

01 09 10 Apr. 15, 2009 2010348 Supersedes T. B. Group 01, number 09-06 dated Apr. 8, 2009 due to additional "Note" under Technical Background information.

Update Programming Engine Control Module to Address DTCs P0300-P0304, P0420 and P0441

NOTE: DO NOT diagnose or replace Evaporative or Emissions system components such as Catalyst, Ignition Components, Fuel Cap, Activated Charcoal Canister or the Evaporative system purge valve -N80-, before performing the update function as explained in this bulletin.

Updated ECM software that addresses:

DIAGNOSTIC TROUBLE CODES

DTC	Description
P0300	Random Multiple Cylinder Misfire Detected
P0301	Cylinder 1 Misfire Detected
P0302	Cylinder 2 Misfire Detected
P0303	Cylinder 3 Misfire Detected
P0304	Cylinder 4 Misfire Detected
P0420	Catalyst System Efficiency Below Threshold Bank 1
P0441	Evaporative Emissions System Incorrect Purge Flow

TECHNICAL BACKGROUND

May be caused by software of Engine Control Module.

Improved software in Engine Control Module resolves concerns related to:

EVAP strategy change to prevent system testing below 5 degrees Celsius (40 degrees Fahrenheit).
Adjustment to OBD diagnostic parameter strategy.
For catalyst efficiency faults also see Technical Bulletin instance number 2010271 .

NOTE: Monitoring strategy for catalytic converter is too sensitive causing unnecessary catalytic converter replacements. Engine misfire diagnostic strategy is adjusted for better catalyst protection. Updated programming of the ECM software is based on recent engineering experiences and makes this knowledge available for the monitoring strategy.

PRODUCTION SOLUTION

Software concern was identified after end of production.

SERVICE

PROCEDURE

Engine Control Module Update - Programming (Flashing) using Software Version Management (SVM)

Vehicle requirements

Battery MUST have minimum no-load charge of 12.5V (failure to maintain voltage during update process can lead to ECM failure) (use a Volkswagen approved Midtronics/InCharge 940 (INC-940) tester/charger to maintain battery voltage).
VAS 5051: connected to vehicle and to 110V AC Power supply at all times during procedure.
VAS 5052: connected to vehicle with battery voltage requirements met.
Any appliances with high electromagnetic radiation (i.e. mobile phones) switched OFF.

When performing the update programming procedure, ALL DTCs for all systems are erased.

DTCs linked to Guided Fault Finding function tests will be lost. Therefore, always address stored DTCs for Customer concerns unrelated to the update programming procedure first.

NOTE: Non-observance of the following points may lead to ECM failure! VAS 5051 or VAS 5052 must always be connected to the approved power supply at the approved voltages. Under no circumstances should the power supply be interrupted or the diagnostic connector unplugged during the update programming procedure. Any appliances with high electromagnetic radiation (i.e. mobile phones) must be switched OFF.

Prior to launching VAS-PC application and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Document # VSE-08-18. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.

Tip: The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim.

For further update instructions and troubleshooting, refer to SVM Technical Bulletin Instance 2014603 , in ElsaWeb.

Update the Engine Control Module using the SVM action code as listed in the table below:

SOFTWARE INFORMATION

Model	Engine	Old Software Part No.	Old Software Version	New Software Part No.	New Software Version (or higher)	SVM Action Code
Jetta, Jetta Wagon, GTI	1.8T	06A906032DL	All	06A906032DL	0007	3061
		06A906032GH	All	06A906032GH	0007	3061
		06A906032HF	All	06A906032SL	0040	3061
		06A906032LQ	All			3061
		06A906032NL	All			3061
		06A906032SL	All			3061
		06A906032HS	All	06A906032SK	0040	3061
		06A906032LP	All			3061
		06A906032NK	All			3061
		06A906032SK	All			3061
		06A906032ML	All	06A906032SM	0040	3061
		06A906032PL	All			3061
		06A906032RN	All			3061
		06A906032SM	All			3061

Tip: The procedure can be found in GFF under Functions/ Component Selection, Software Version Management, Adjust Software.

NOTE: An Update Programming procedure (flash) may overwrite any "TUNED" ECM or TCM programming. A "TUNED" ECM or TCM is described as any ECM or TCM altered so as to perform outside the normal parameters and specifications approved by Volkswagen Group of America.

Current Tuned ECM or TCM requirements: If you encounter a vehicle with a "Tuned" ECM or TCM, your dealership must do the following before performing any procedure that updates ECM or TCM programming:

Notify the owner that their ECM or TCM was found to have been tuned.
Notify the owner any damage caused by the tuning of the ECM or TCM (including any adverse emissions consequences) will not be covered by Volkswagen Group of America warranties.
Obtain the owner's written consent (see attached Control Module Tuning form) for any requested repair under warranty or outside warranty that requires flashing, which will automatically overwrite the "Tuned" program.

If the vehicle has a tuned ECM or TCM, ensure the Control Module Tuning Form has been filled out.

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

(A4) Jetta, Jetta Wagon, GTI

2001-2005

1.8L (AWD, AWP, AWW)

All

Claim Type:

Use applicable Claim Type ⁽¹⁾

SAGA Coding

Service Number:

Damage Code

Damage Location (Depends on Service No.)

Parts Manufacturer (removed part)

2470

0039

Use applicable when indicated in ElsaWeb (L/R)

(A4) Jetta 3 M E ⁽²⁾

Jetta Wagon, W W O ⁽²⁾

GTI 2 B R ⁽²⁾

Labor Operation ⁽³⁾ : Includes all operations necessary to complete repair

24702599 = Maximum A-Time allowed 130 TU

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = XX TU max.

Road Test

01210002 & 01210004

Technical Diagnosis

0132xxxx = XX TU max.

Claim Comment: Input "As per Technical Bulletin 2010348" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only.

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with Elsa updates.

⁽⁴⁾	Documentation required per Warranty Policy & Procedures Manual.

REQUIRED PARTS AND TOOLS

No Special Parts required.

REQUIRED TOOLS

Tool Description	Tool No:	Quantity
VAS Diagnostic Tool (with Base CD V.14.00 and the Brand CD V.14.88.00 or higher)	VAS 5051/5052	1
Midtronics Battery tester/charger	InCharge 940 (INC-940)	1

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.

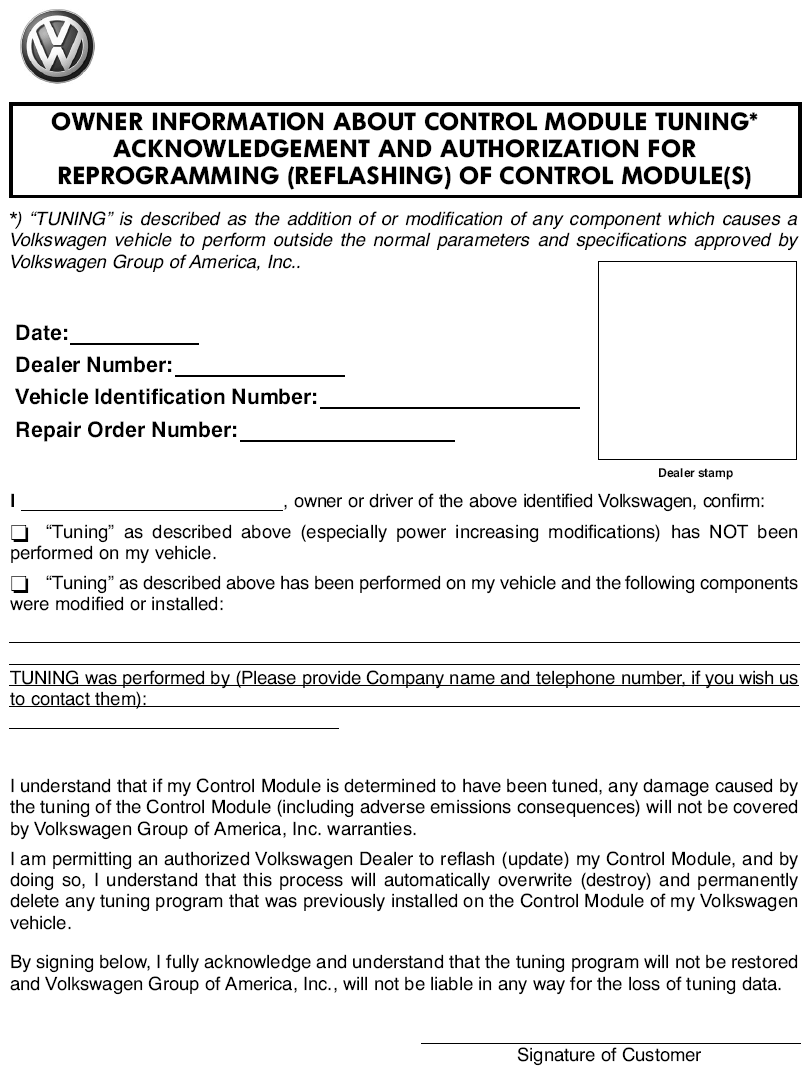

Fig 1: Control Module Tuning Form
