Vehicles with engine code BDF

Remove engine cover.
Disconnect connector from ignition coils 1 to 6.
NOTE: Before disconnecting harness connectors, mark allocation to component.

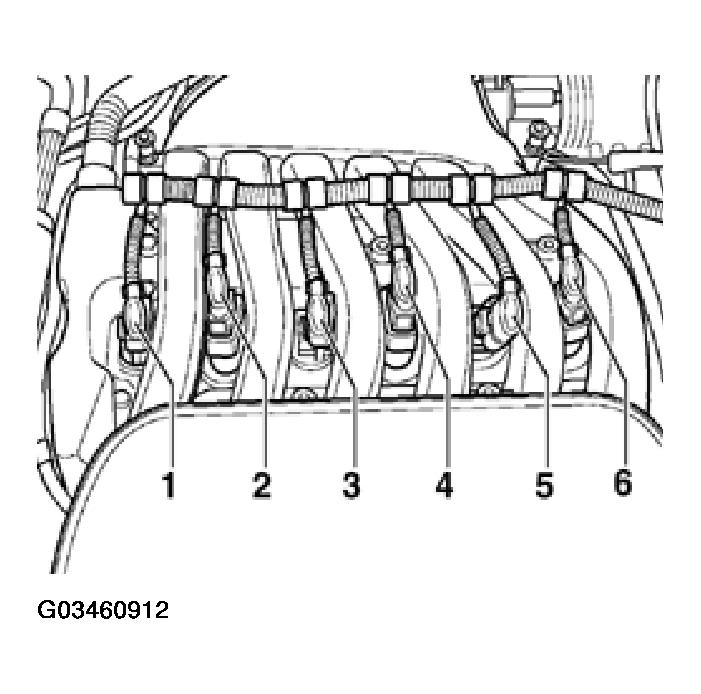

Fig 1: Disconnecting Connector From Ignition Coils 1 To 6 (Engine Code BDF)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

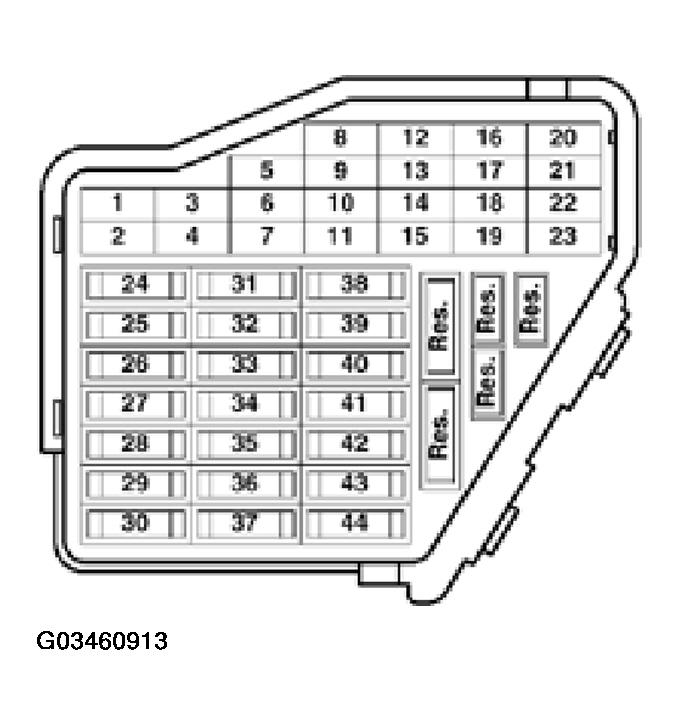

Fig 2: Locating Fuse 29 (Engine Code BDF)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: By removing fuse 29, voltage supply to the fuel injectors is interrupted. Fuse block is located behind access panel at far left end of dash.
