Circuit Protection Devices

NOTE: All engine specific components listed in the following tables below apply to the 2.0L only. Component location information for the 3.6L engine is not supplied by the manufacturer. For additional information regarding 3.6L components, see appropriate system repair article.
CIRCUIT PROTECTION DEVICES LOCATION

Component Location

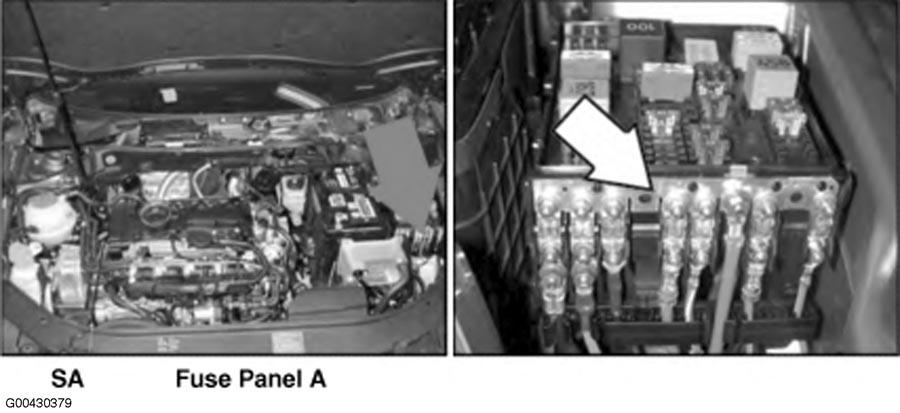

Fuse Panel A Left side of engine compartment. See Figure.

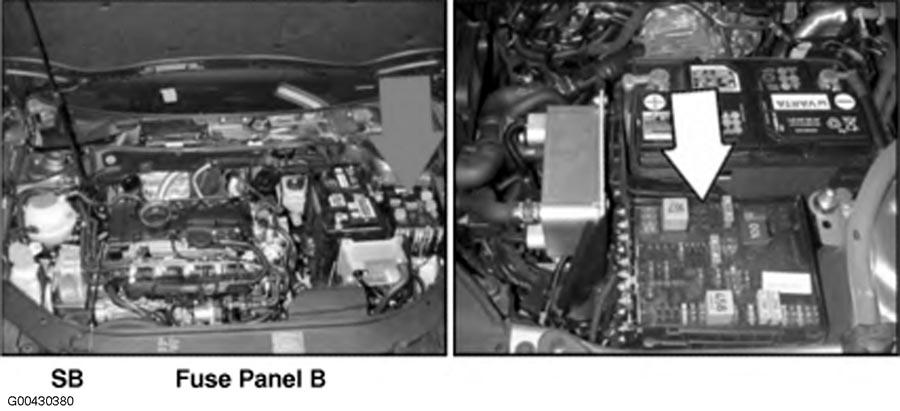

Fuse Panel B Left side of engine compartment. See Figure.

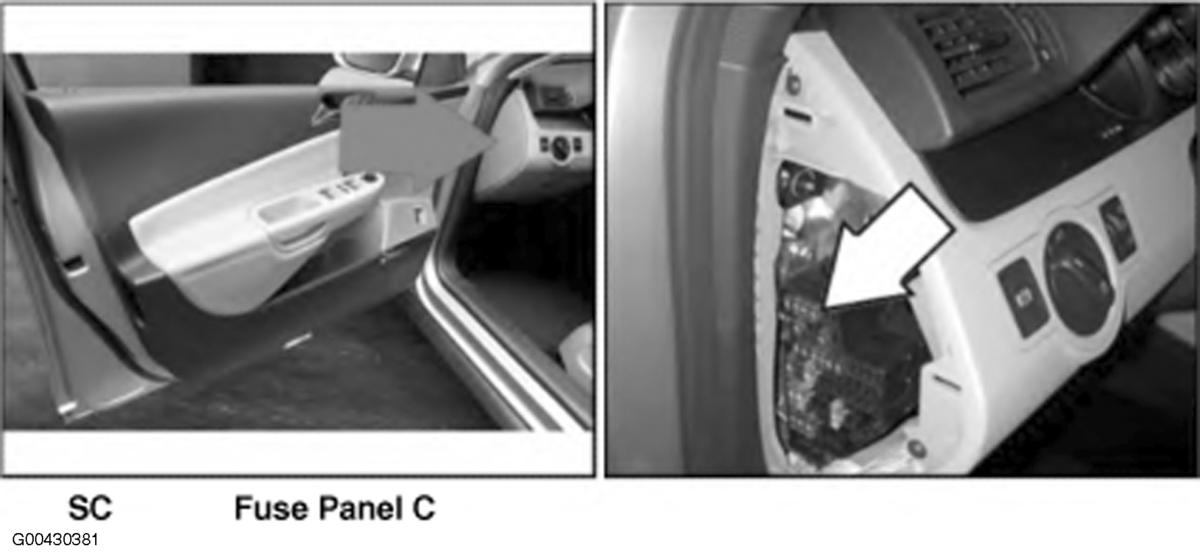

Fuse Panel C At left end of dash. See Figure.

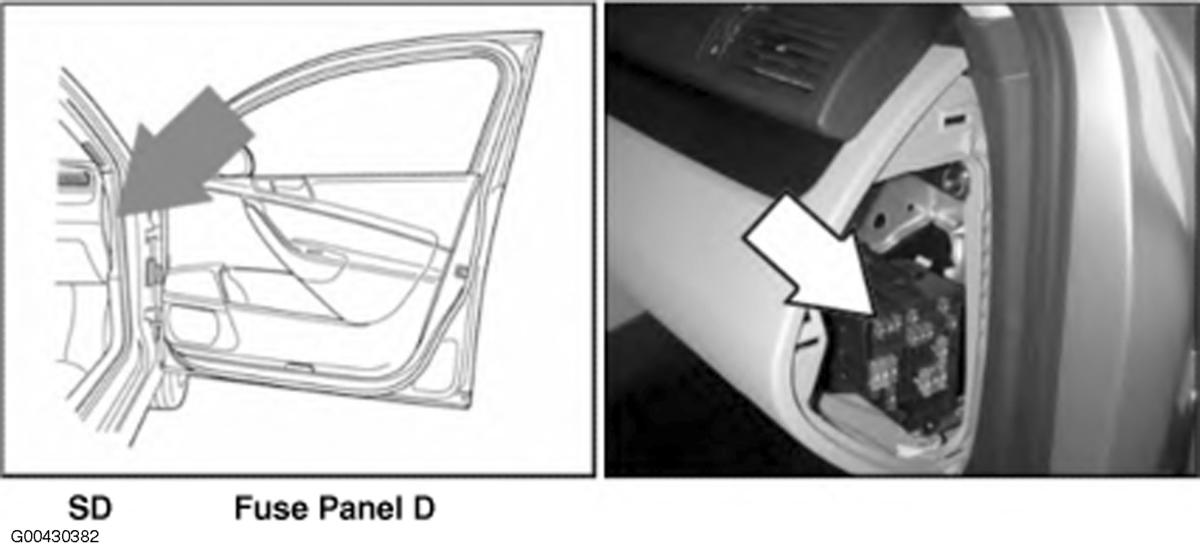

Fuse Panel D At right end of dash. See Figure.
