Control Modules Overview

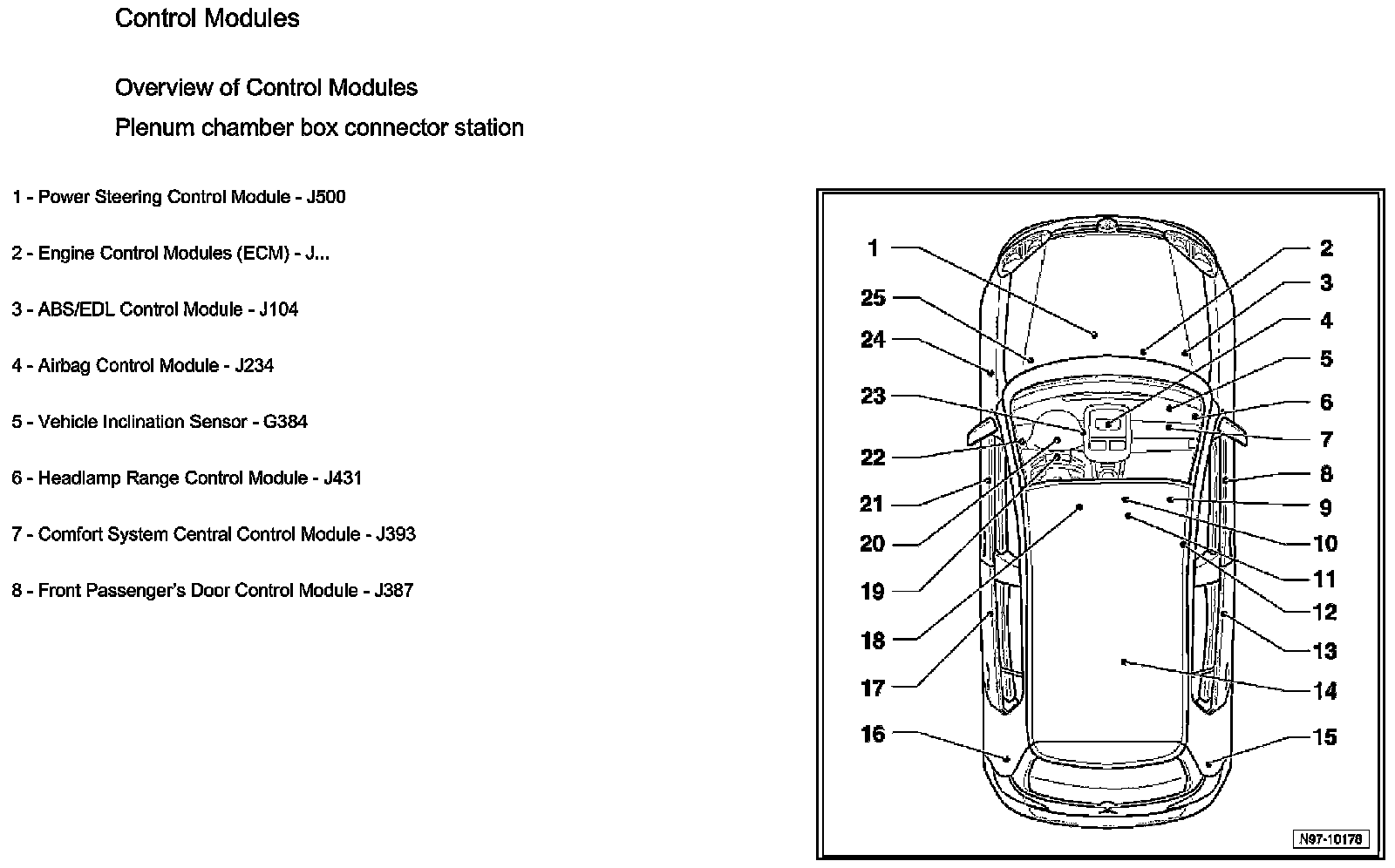

Control Modules Overview (Part 1):

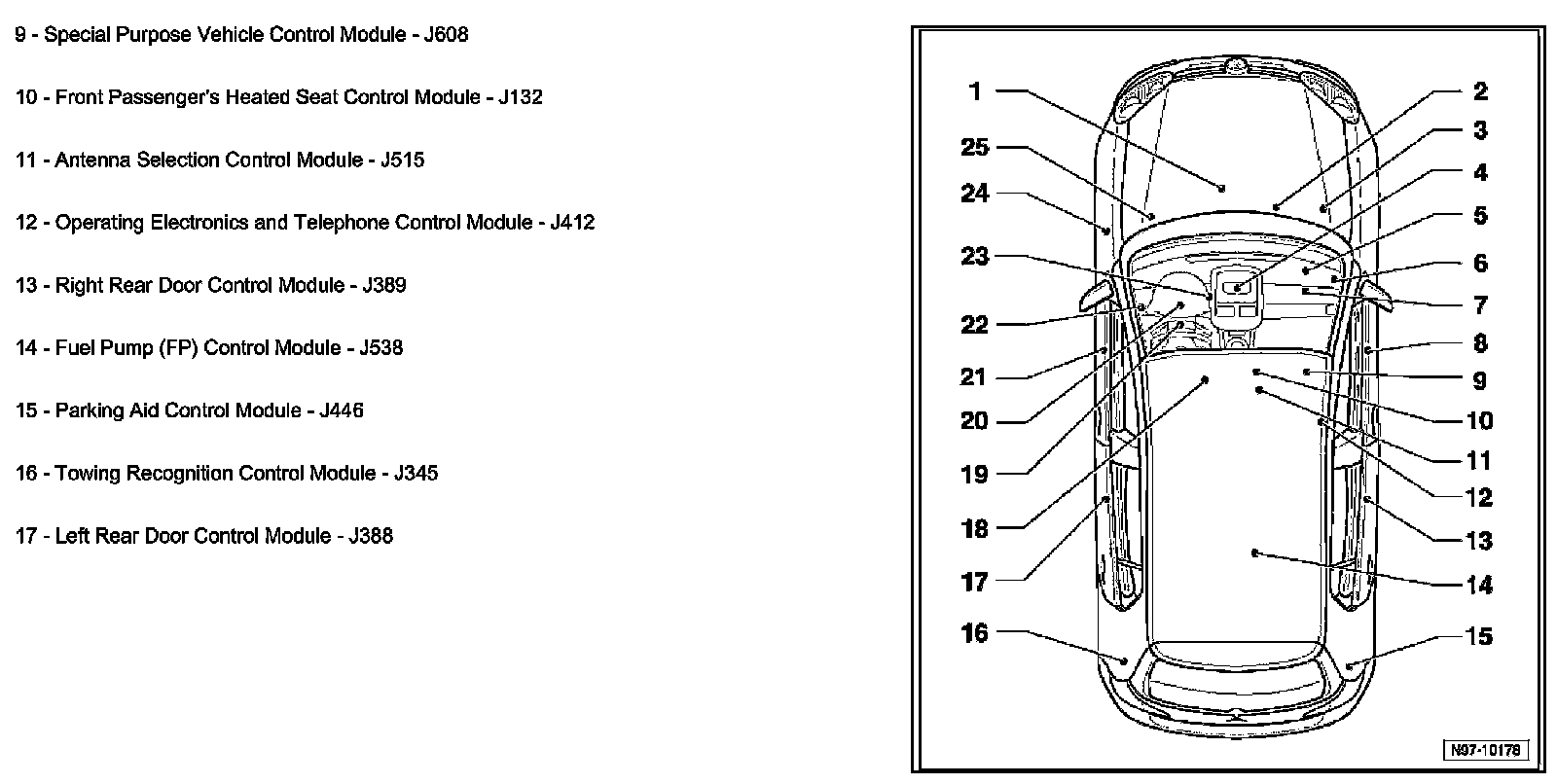

Control Modules Overview (Part 2):

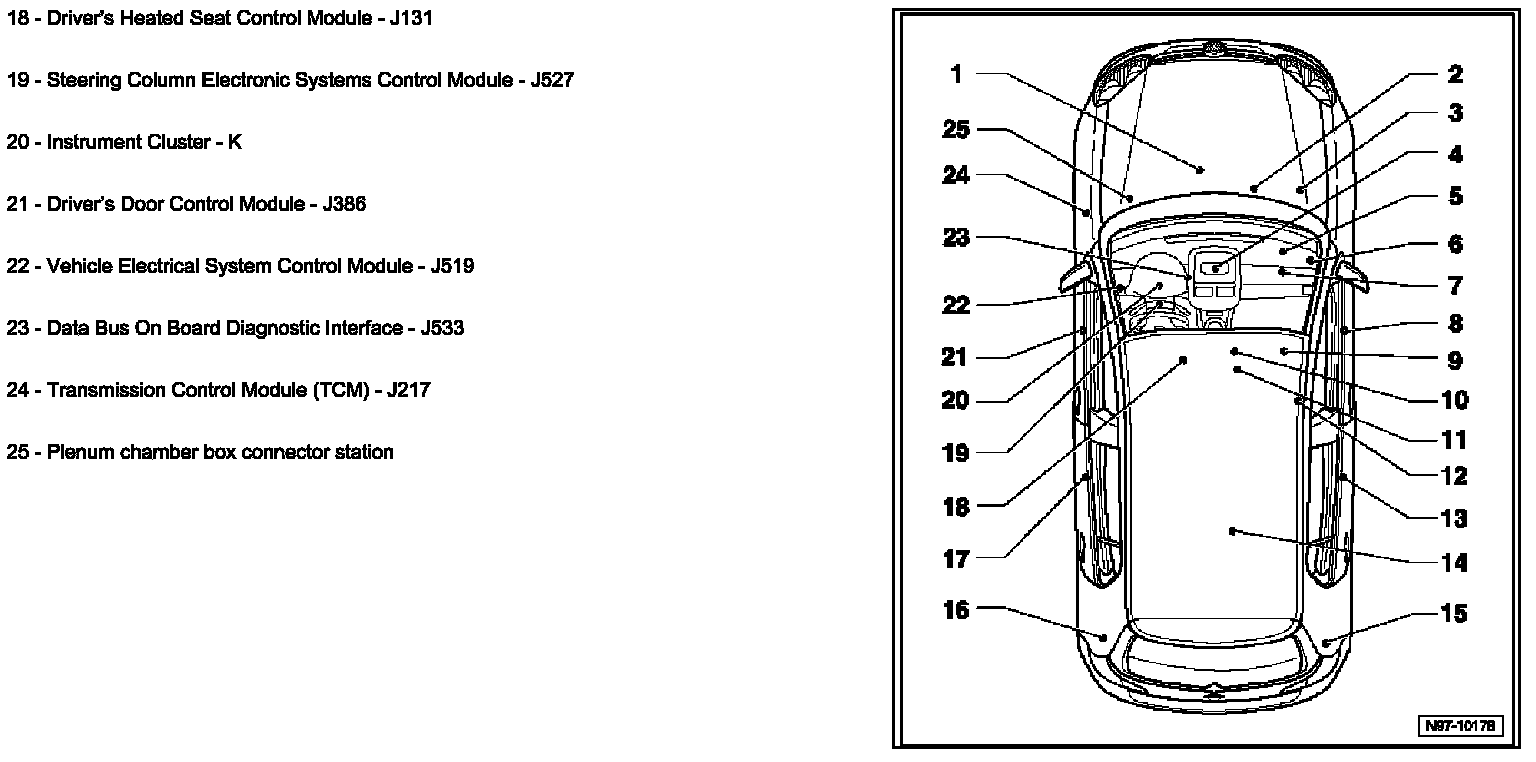

Control Modules Overview (Part 3):
