Transmission Control Module Can-Bus Terminal Resistance, Checking

The Engine Control Module (ECM) -J623- communicates with all databus capable control modules via a CAN databus.

These databus capable control modules are connected via two data bus wires which are twisted together (CAN_High and CAN_Low), and exchange information (messages). Missing information on the databus is recognized as a malfunction and stored.

Trouble-free operation of the CAN-bus requires that it have a terminal resistance. The central terminal resistor is located in the Engine Control Module (ECM) -J623-.

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram.

Test requirement

• A CAN-Bus malfunction was recognized.
• The Engine Control Module (ECM) -J623- fuses OK.
• Battery voltage at least 12.5 V.
• Ignition switched off.

Procedure

-- Move the passenger seat to the rear upward position.

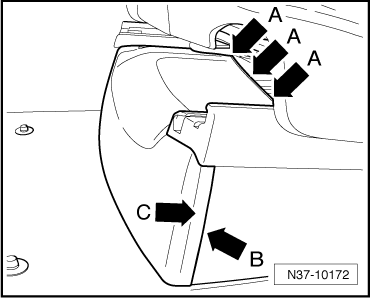

-- Release retaining tabs -A, B, and C- and remove the right passenger seat trim.

-- Move the passenger seat to the front upward position.

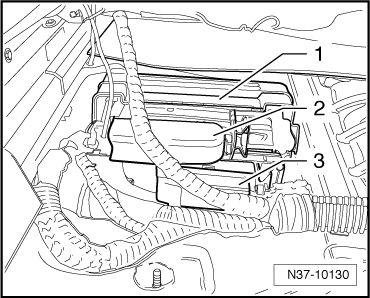

-- Disconnect the Transmission Control Module (TCM) -J217- electrical harness connector -3-.

-- Using a Multimeter, check the Transmission Control Module (TCM) -J217- electrical harness connector terminals 34 to 46 for resistance.

Specified value: 60 to 72 Ω (at approx. 20° C)

If the specified value was not obtained:

-- Check the wiring connection for an open circuit, short circuit to Battery (+) or Ground (GND).

-- Check the wiring connection for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring:

-- Replace the Engine Control Module (ECM) -J623-. Refer to ENGINE CONTROL MODULE, REPLACING .

If the specified value was obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

-- Install the test box

If the manufacturers test box is not being used. Perform the following step.

-- Remove the Transmission Control Module (TCM) -J217-. Refer to TRANSMISSION CONTROL MODULE, REPLACING .

-- Using a Multimeter, check the Transmission Control Module (TCM) -J217- electrical harness connector to the Engine Control Module (ECM) -J623- electrical harness connector T94 for resistance.

Transmission Control Module (TCM) -J217- electrical harness connector terminals	Engine Control Module (ECM) -J623- electrical connector T94 terminals or test box sockets
34 (Can_Bus Low)	67
46 (Can_Bus High)	68

Specified value: 1.5 Ω Max.

If the specified value was not obtained:

-- Check the wiring connection for an open circuit, short circuit to Battery (+) or Ground (GND).

-- Check the wiring connection for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and the resistance was OK:

-- Replace the Transmission Control Module (TCM) -J217-. Refer to TRANSMISSION CONTROL MODULE, REPLACING .

-- Assembly is performed in the reverse of the removal.

Final procedures

1. Check the DTC memory. DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase DTC memory of the Transmission Control Module (TCM) -J217-. DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. Generate readiness code. READINESS CODE .
