Vehicle Positioning System Control Module

The Vehicle Positioning System Control Module -J895- is located behind the left luggage compartment side trim.

Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the luggage compartment left trim panel, refer to Removal and Installation .

-- Remove the screws -3 and 4- and remove the Vehicle Positioning System Control Module -J895- -1- from the bracket -2-.

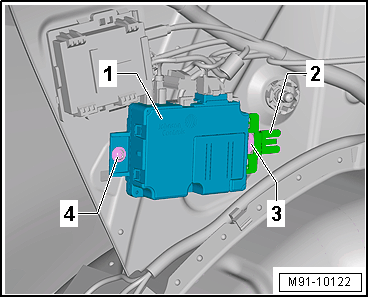

Fig 1: Identifying Vehicle Positioning System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors from the Vehicle Positioning System Control Module -J895- -1-.

Installing

Install in reverse order of removal.

Torque Specifications:
