Engine Speed Sensor G28

Removing

-- Remove the engine cover.

-- Loosen the charge air hose clamp -2-.

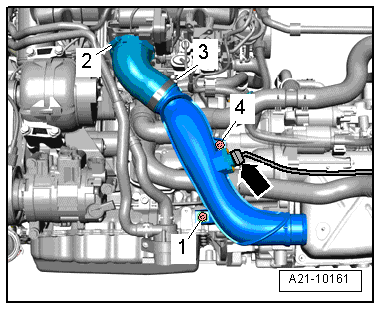

Fig 1: Identifying Air Guide Hose Bolts, Air Guide Pipe Hose Clamps & Electrical Harness Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector -arrow-.

-- Remove the noise insulation. Refer to one of the following:

Eos and Passat, refer to "Noise Insulation" in Removal and Installation .

CC, refer to "Noise Insulation" in Description and Operation

-- Remove the bolts -1 and 4- and remove the charge air pipe downward from the throttle valve control module.

-- Remove the charge air hose -1- from the charge air cooler and remove the hose downward.

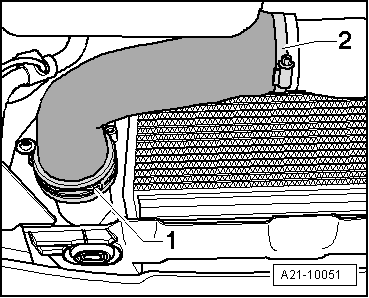

Fig 2: Identifying Charge Air Hose And Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the engine speed sensor.

Fig 3: Identifying Engine Speed (RPM) Sensor G28 Connector -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine speed sensor bolt.

Installing

Install in the reverse order of removal. Note the following:

Tightening specification, see -item 7- in the IGNITION SYSTEM COMPONENT OVERVIEW .
