Special Tools
WARNING: This page is about a different variant/trim than selected.

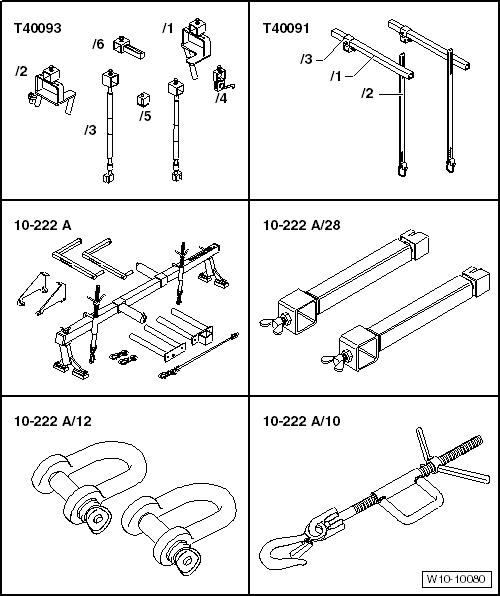

Special tools and workshop equipment required
- Mount T40093/5, from the Engine Support Supplement Set T40093
- Moveable Joint T40093/4, from the Engine Support Supplement Set T40093
- Moveable Joint T40091/3, from the Engine Support Basic Set T40091
- Rail with Holes T40091/2, from the Engine Support Basic Set T40091
- Square Pipe T40091/1, from the Engine Support Basic Set T40091
- Engine Support Bridge 10-222 A
- Adapter 10-222 A/28
- Shackle 10-222 A/12
- Bracket with Spindle and Hook 10-222 A/10

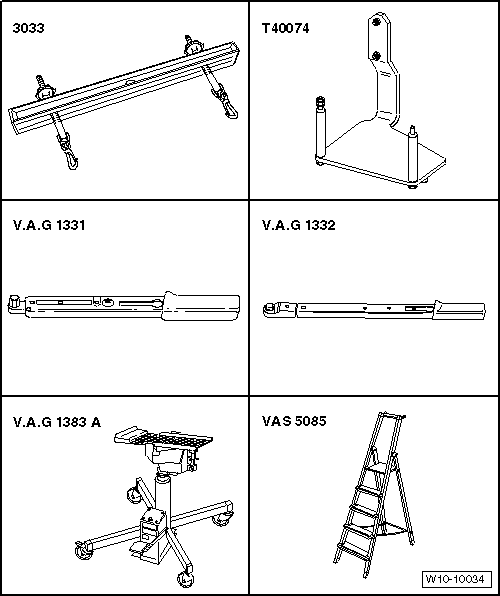

Special tools and workshop equipment required
- Lifting Tackle 3033
- Engine Support T40074
- Torque Wrench (5-50 Nm) V.A.G 1331
- Torque Wrench (40-200 Nm) V.A.G 1332
- Engine-/Gearbox Jack V.A.G 1383 A
- Step Ladder VAS 5085
Special tools and workshop equipment required
- Hose Clip Pliers VAS 6340
- Spring Type Clip Pliers VAS 6499
- Engine and Transmission Holder VAS 6095
- Shop Crane - Load Cap = 700-1200 KG VAS 6100
- Drip Tray for VAS 6100 VAS 6208
- Engine Bung Set VAS 6122
Special tools and workshop equipment required
- Adapter 10-222 A/7
- Support Bracket 10-222 A/31
- Adapter 10-222 A/28-2
- Spring Type Clip Pliers VAS 6499
- Socket, Multipoint Bit XZN 14 T10061
- Insert Tool 18 mm T10179
- Hose Clamps Up to 25 mm Dia. 3094
- Lifting Tackle 3033
- Engine Support 3269
