Steering Column Control Module: Removing

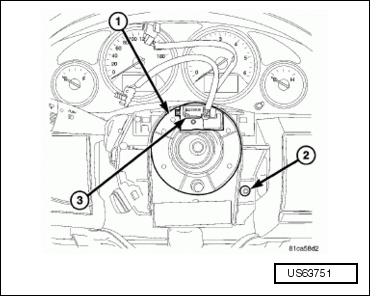

Fig 1: Lower Mounting Screw & Steering Column Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower mounting screw (2) attaching the steering column control module to the steering column.

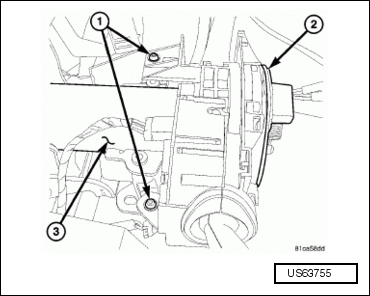

Fig 2: Two Upper Mounting Screw & Steering Column

Courtesy of AUDI OF AMERICA, LLC

-- Remove the two upper mounting screws (1) attaching the SCCM to the steering column.

-- Slide the SCCM off the steering column (2).
