Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Relay Panel

G00454115

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Relay Carrier

G00454116

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Center Rear Of Trunk Lid

G00454119

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Right Side Of Dash

G00454120

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Left Side Of Dash

G00454121

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Steering Column

G00454122

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 7: Right Side Of Luggage Compartment

G00454123

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 8: Trunk Lid

G00454124

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 9: Front Of Engine Compartment

G00454125

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 10: Left Rear Of Engine Compartment

G00454126

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 11: Left Side Of Dash

G00454127

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 12: Top Center Of Dash

G00454128

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 13: Top Center Of Dash

G00454130

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 14: Left End Of Dash

G00454131

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 15: Right End Of Dash

G00454132

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 16: Left Side Of Front Grille

G00454133

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 17: Driver's Door

G00454134

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 18: Front Passenger's Door

G00454135

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 19: Left Side Of Dash

G00454136

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 20: Left Side Of Engine

G00454137

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 21: Left Side Of Engine

G00454138

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 22: Left Side Of Engine

G00454139

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 23: Left End Of Dash

G00454140

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 24: Center Rear Of Roof

G00454141

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 25: Right Rear Of Engine Compartment

G00454142

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 26: Left Trim Panel

G00454143

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 27: Right Trim Panel

G00454144

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 28: Center Of Dash

G00454145

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 29: Lower Rear Of Engine Compartment

G00454146

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 30: Left Front Of Engine Compartment

G00454147

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 31: Right Front Of Engine Compartment

G00454148

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 32: Front Of Engine Compartment

G00454149

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 33: Right Side Of Engine Compartment

G00454150

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 34: Right Front Wheel Bearing Housing

G00454151

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 35: Left Front Wheel Bearing Housing

G00454152

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 36: Rear Of Engine Compartment

G00454153

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 37: Left Side Of Dash

G00454154

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 38: Right Front Wheelwell

G00454155

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 39: Right Rear Of Engine Compartment

G00478875

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 40: Front Of Center Console

G00454157

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 41: Under Roof Console

G00454158

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 42: Behind Instrument Cluster

G00454159

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 43: Left Side Of Engine

G00454160

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 44: Driver's Door

G00454161

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 45: Front Passenger's Door

G00454162

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 46: Right Side Of Dash

G00454163

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 47: Left Rear Of Engine Compartment

G00454164

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 48: Lower Rear Of Engine Compartment

G00454165

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 49: Left Side Of Dash

G00454166

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 50: Steering Column

G00454167

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 51: Left Side Of Dash

G00454168

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 52: Center Console

G00454169

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 53: Under Front Passenger's Seat

G00454170

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 54: Front Of Transmission

G00454171

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 55: Under Driver's Seat

G00454172

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 56: Under Front Passenger's Seat

G00454173

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 57: Right Side Of Dash

G00454174

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 58: Left Rear Of Engine Compartment

G00454175

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 59: Center Front Of Roof

G00454176

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 60: Steering Column

G00454177

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 61: Right Side Of Dash

G00454178

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 62: Right Side Of Dash

G00454179

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 63: Left "B" Pillar

G00454180

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 64: Right "B" Pillar

G00454181

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 65: Left Rear Of Roof

G00454182

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 66: Right Rear Of Roof

G00454183

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 67: Left Side Of Dash

G00454184

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 68: Right Front Wheel Housing

G00454185

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 69: Right Rear Wheel Housing

G00454186

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 70: Left Side Of Dash

G00454188

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 71: Right Side Of Dash

G00454189

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 72: Front Of Engine Compartment

G00454190

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 73: Lower Rear Of Engine Compartment

G00454191

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 74: Right Side Of Dash

G00454192

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 75: Left Side Of Engine

G00454193

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 76: Right Front Wheel Housing

G00454194

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 77: Front Of Engine Compartment

G00454195

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 78: Right Rear Of Engine Compartment

G00454196

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 79: Oil Pump Housing

G00454198

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 80: Shift Mechanism

G00454199

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 81: HVAC Assembly

G00454200

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 82: Direct Shift Transmission

G00454201

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 83: Automatic Transmission

G00454202

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 84: Automatic Transmission Valve Body

G00454203

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 85: Left Side Of Engine Compartment

G00454204

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 86: Left Side Of Engine Compartment

G00454205

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 87: Right Kick Panel

G00454206

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 88: Left Kick Panel

G00454207

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 89: Right Kick Panel

G00454208

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 90: Right Side Of Rear Lid

G00454209

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 91: Left Rear Of Engine Compartment

G00454210

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 92: Right Rear Of Engine Compartment

G00454211

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 93: Right Kick Panel

G00454212

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 94: Left Side Of Engine Compartment

G00454213

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 95: Left Side Of Engine Compartment

G00454214

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 96: Left Side Of Engine Compartment

G00454215

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 97: Left Front Of Engine Compartment

G00454216

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 98: Right Front Of Engine Compartment

G00454217

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 99: Left Side Of Luggage Compartment

G00454218

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 100: Right Side Of Luggage Compartment

G00454219

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 101: Right Side Of Luggage Compartment

G00454220

Courtesy of VOLKSWAGEN UNITED STATES, INC.

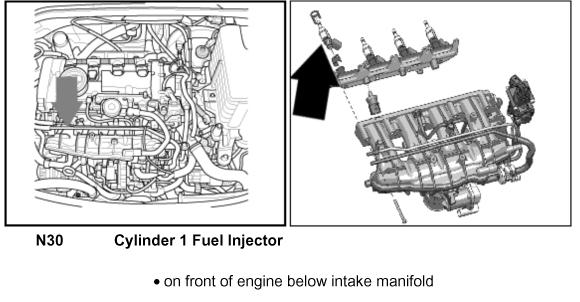

Fig 102: On Front Of Engine, Below Intake Manifold

G00460045

Courtesy of VOLKSWAGEN UNITED STATES, INC.

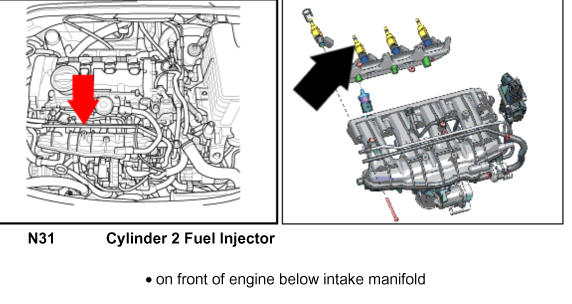

Fig 103: On Front Of Engine, Below Intake Manifold

G00460046

Courtesy of VOLKSWAGEN UNITED STATES, INC.

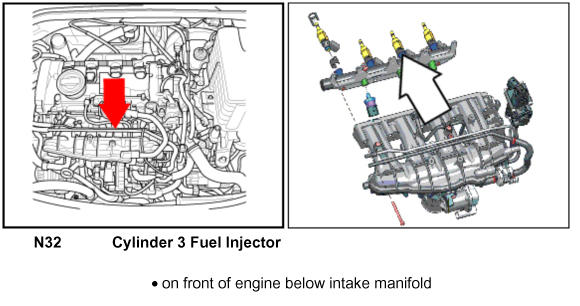

Fig 104: On Front Of Engine, Below Intake Manifold

G00460047

Courtesy of VOLKSWAGEN UNITED STATES, INC.

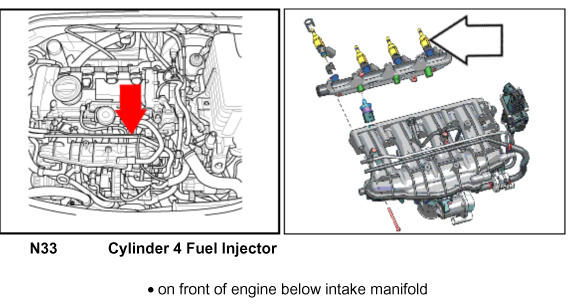

Fig 105: On Front Of Engine, Below Intake Manifold

G00460048

Courtesy of VOLKSWAGEN UNITED STATES, INC.

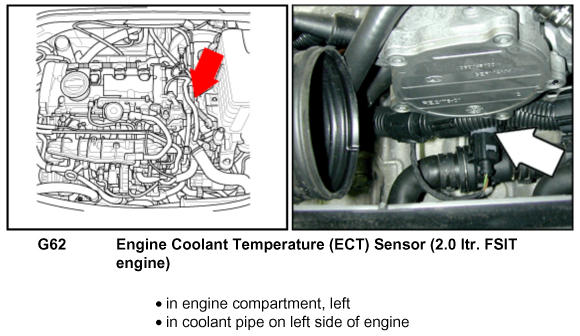

Fig 106: In Coolant Pipe, On Left Side Of Engine

G00460030

Courtesy of VOLKSWAGEN UNITED STATES, INC.

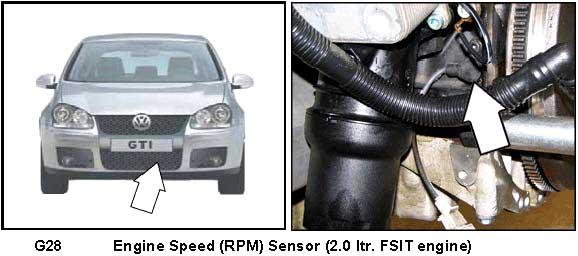

Fig 107: On Engine Block, Near Transmission

G00460031

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 108: In Engine Compartment, Left

G00460032

Courtesy of VOLKSWAGEN UNITED STATES, INC.

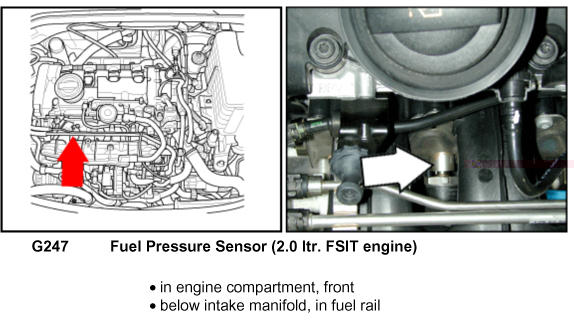

Fig 109: Below Intake Manifold, In Fuel Rail

G00460033

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 110: Below Rear Seat, Right Side

G00460034

Courtesy of VOLKSWAGEN UNITED STATES, INC.

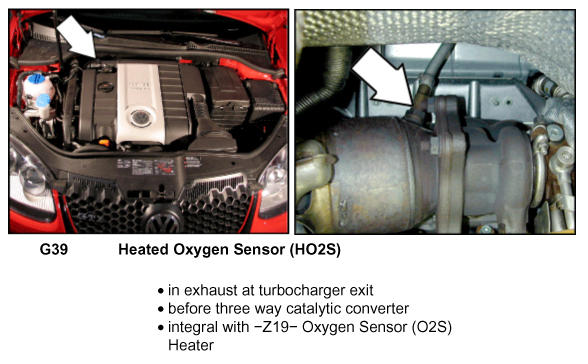

Fig 111: In Exhaust, At Turbocharger Exit

G00460035

Courtesy of VOLKSWAGEN UNITED STATES, INC.

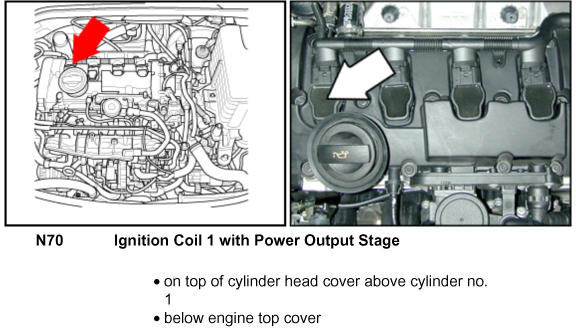

Fig 112: On Top Of Cylinder Head Cover, Above Cylinder No. 1

G00460049

Courtesy of VOLKSWAGEN UNITED STATES, INC.

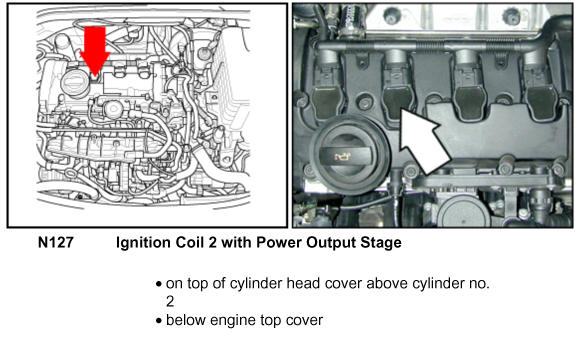

Fig 113: On Top Of Cylinder Head Cover, Above Cylinder No. 2

G00460050

Courtesy of VOLKSWAGEN UNITED STATES, INC.

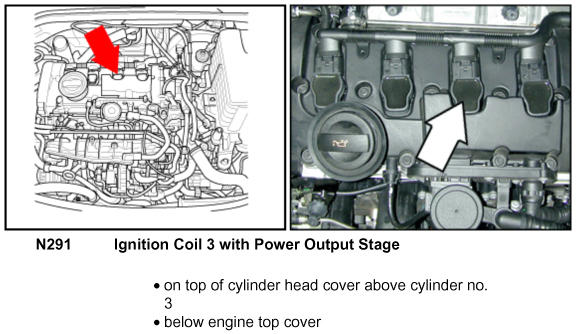

Fig 114: On Top Of Cylinder Head Cover, Above Cylinder No. 3

G00460028

Courtesy of VOLKSWAGEN UNITED STATES, INC.

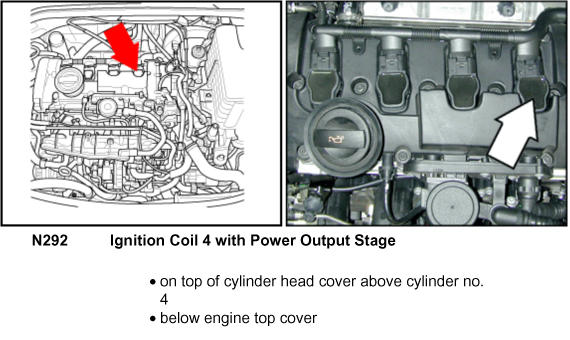

Fig 115: On Top Of Cylinder Head Cover, Above Cylinder No. 4

G00460029

Courtesy of VOLKSWAGEN UNITED STATES, INC.

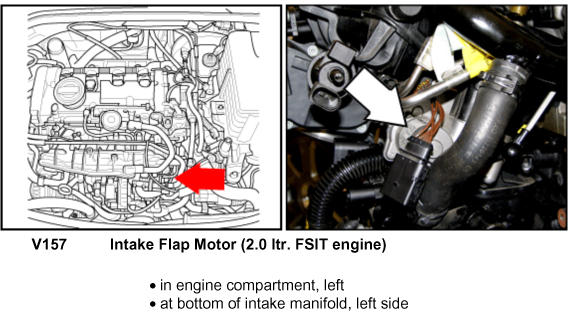

Fig 116: At Bottom Of Intake Manifold, Left Side

G00460037

Courtesy of VOLKSWAGEN UNITED STATES, INC.

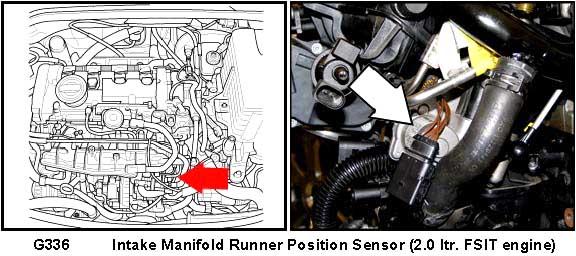

Fig 117: At Bottom Of Intake Manifold, Left Side

G00460038

Courtesy of VOLKSWAGEN UNITED STATES, INC.

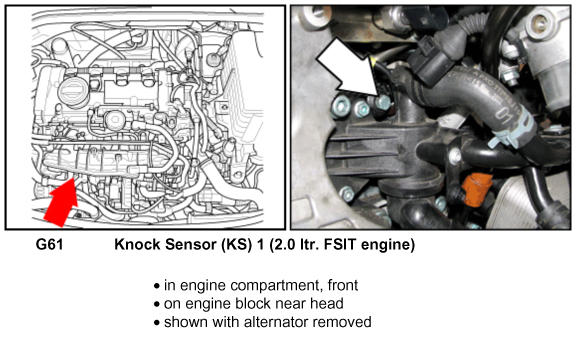

Fig 118: On Engine Block, Near Head

G00460039

Courtesy of VOLKSWAGEN UNITED STATES, INC.

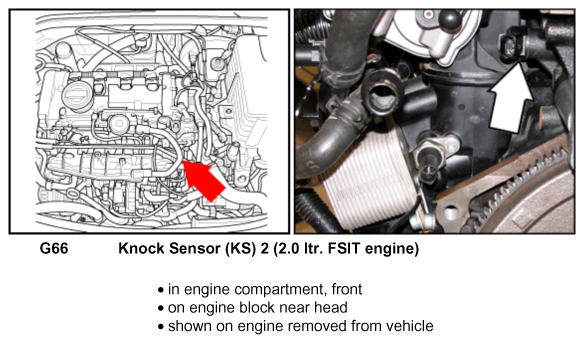

Fig 119: On Engine Block, Near Head

G00460040

Courtesy of VOLKSWAGEN UNITED STATES, INC.

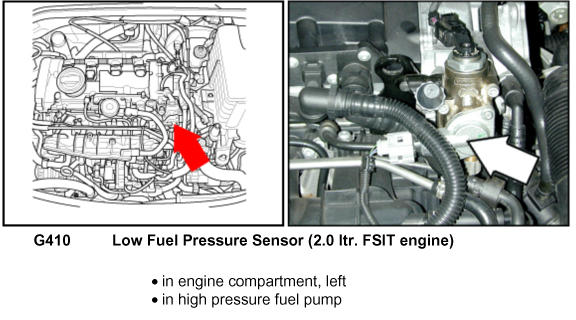

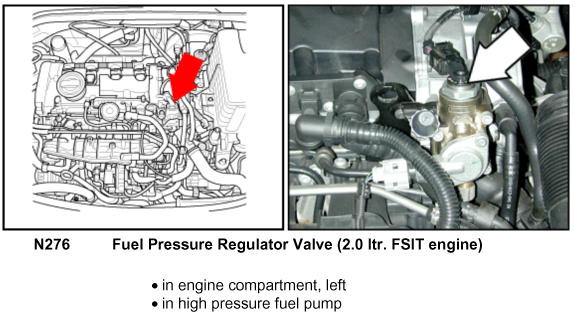

Fig 120: In High Pressure Fuel Pump

G00460041

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 121: In Plenum, Center, Below Plastic Cover

G00460042

Courtesy of VOLKSWAGEN UNITED STATES, INC.

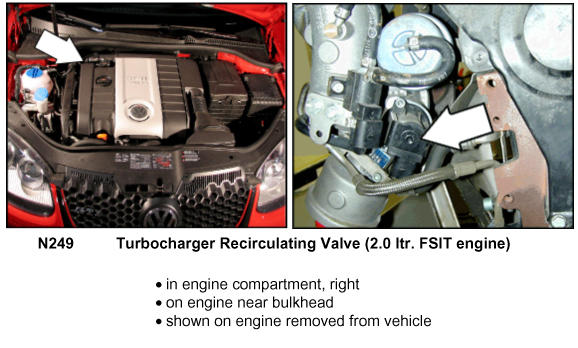

Fig 122: On Engine, Near Bulkhead

G00460043

Courtesy of VOLKSWAGEN UNITED STATES, INC.

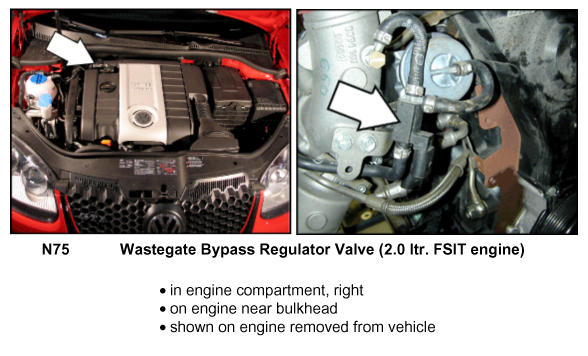

Fig 123: On Engine, Near Bulkhead

G00460044

Courtesy of VOLKSWAGEN UNITED STATES, INC.

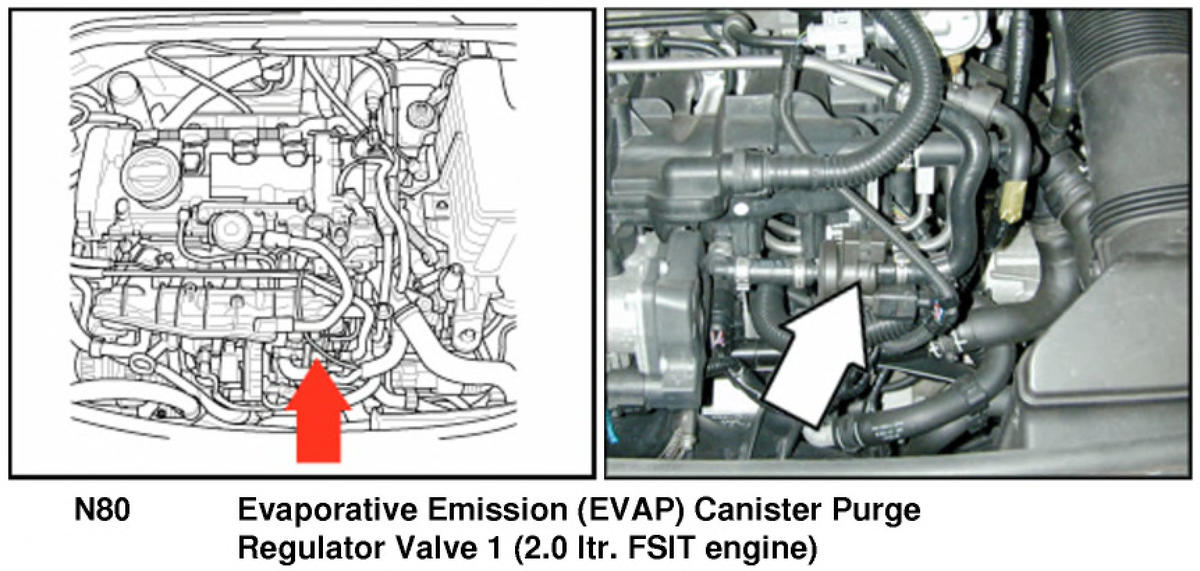

Fig 124: Rear Of Engine

G00472470

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 125: Right Front Of Engine Compartment

G00472471

Courtesy of VOLKSWAGEN UNITED STATES, INC.

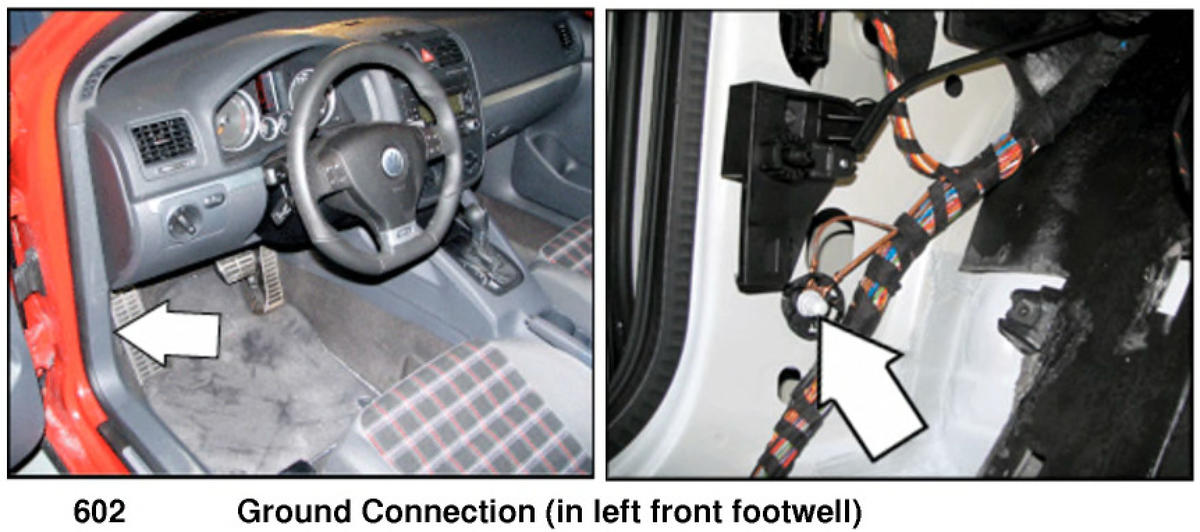

Fig 126: Left Kick Panel

G00472472

Courtesy of VOLKSWAGEN UNITED STATES, INC.

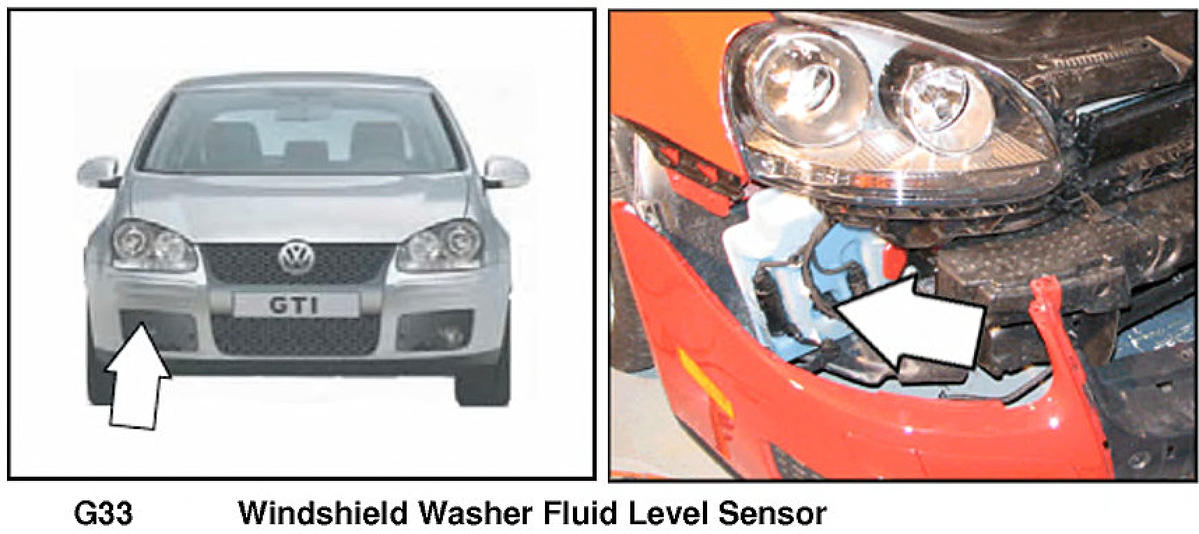

Fig 127: Right Front Of Engine Compartment

G00472473

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 128: Electronics Box High

G00472474

Courtesy of VOLKSWAGEN UNITED STATES, INC.

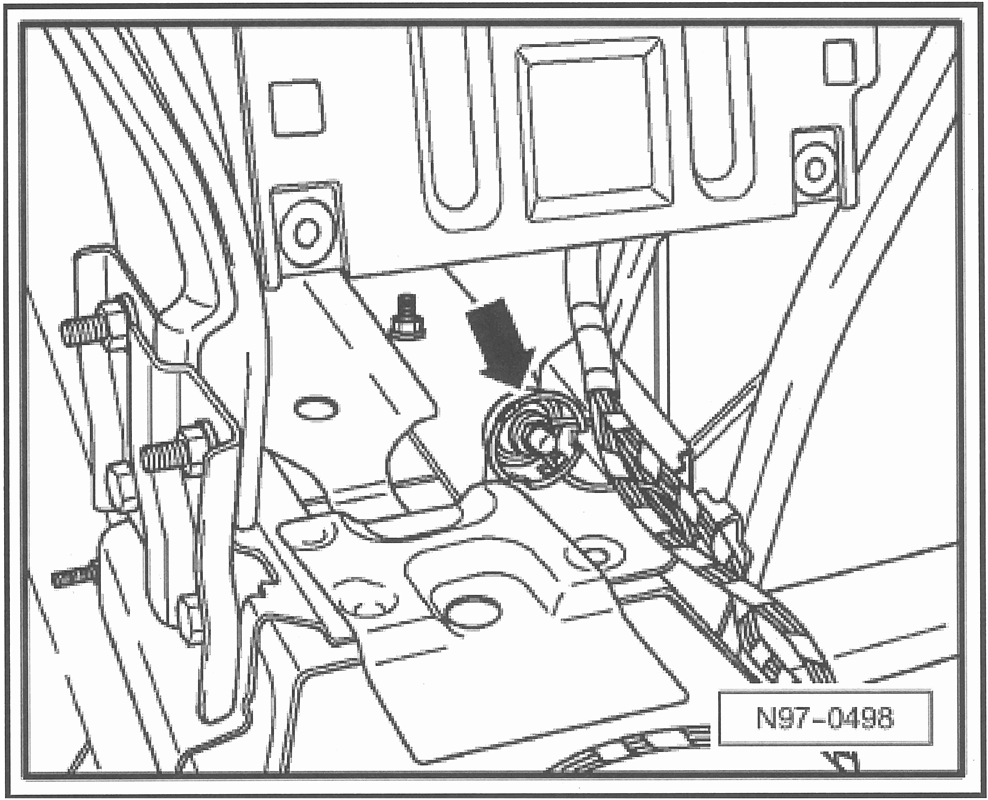

Fig 129: Center Of Dash

G00478866

Courtesy of VOLKSWAGEN UNITED STATES, INC.

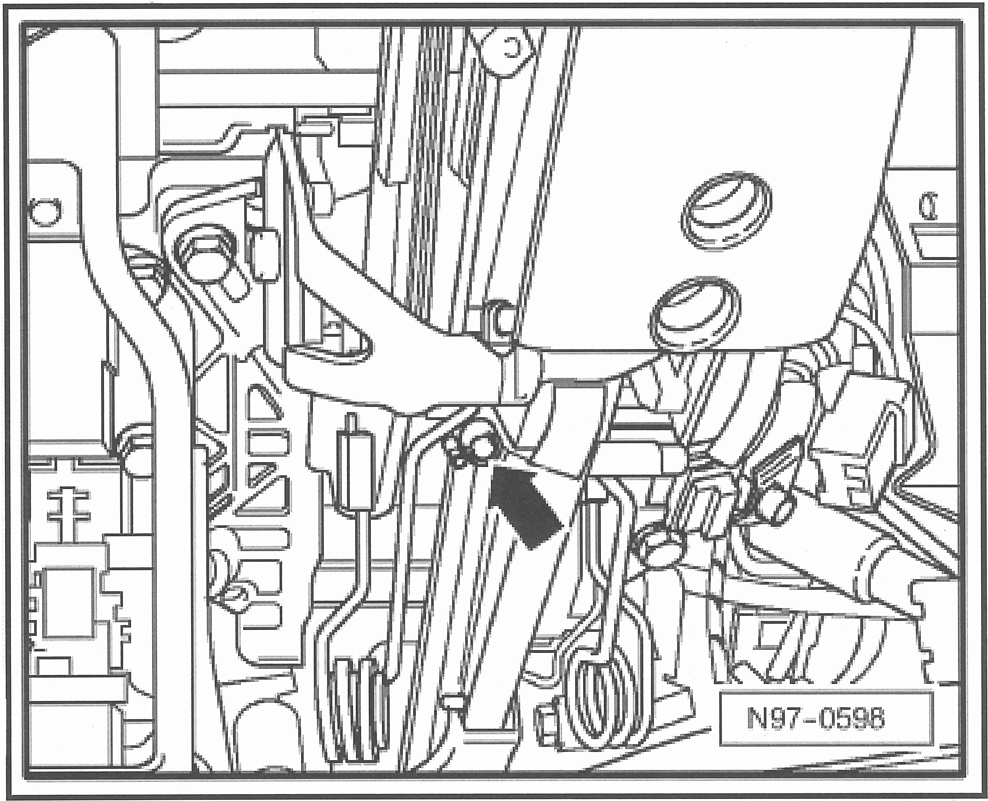

Fig 130: Steering Column

G00478867

Courtesy of VOLKSWAGEN UNITED STATES, INC.

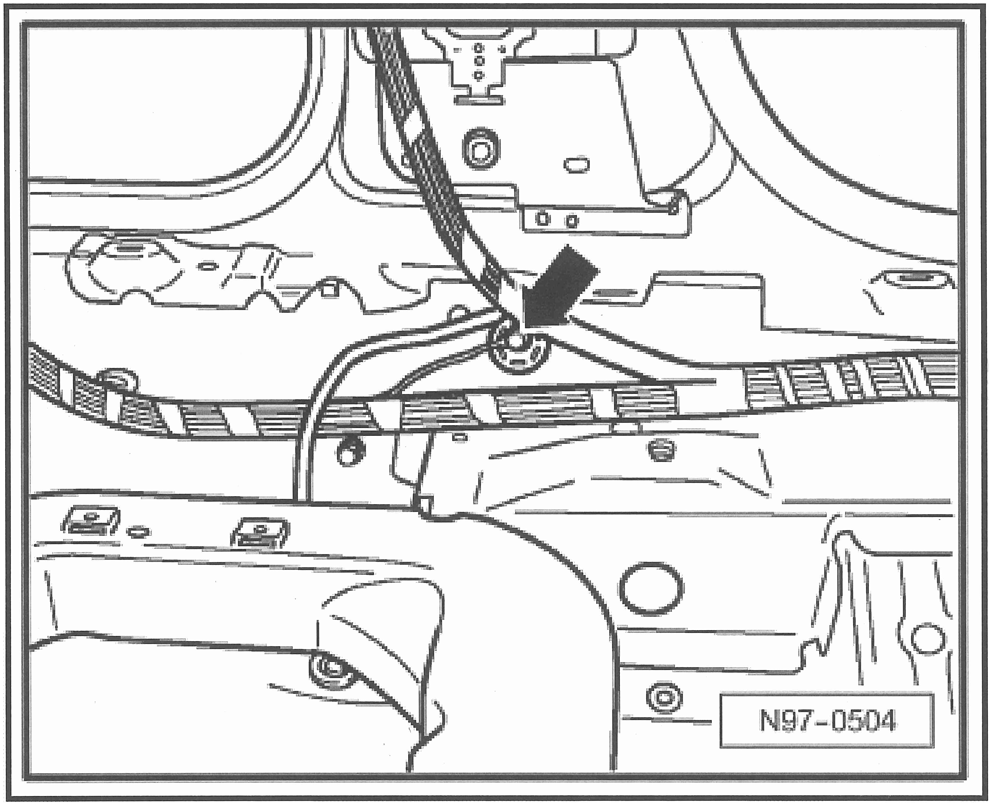

Fig 131: Right "B" Pillar

G00478868

Courtesy of VOLKSWAGEN UNITED STATES, INC.

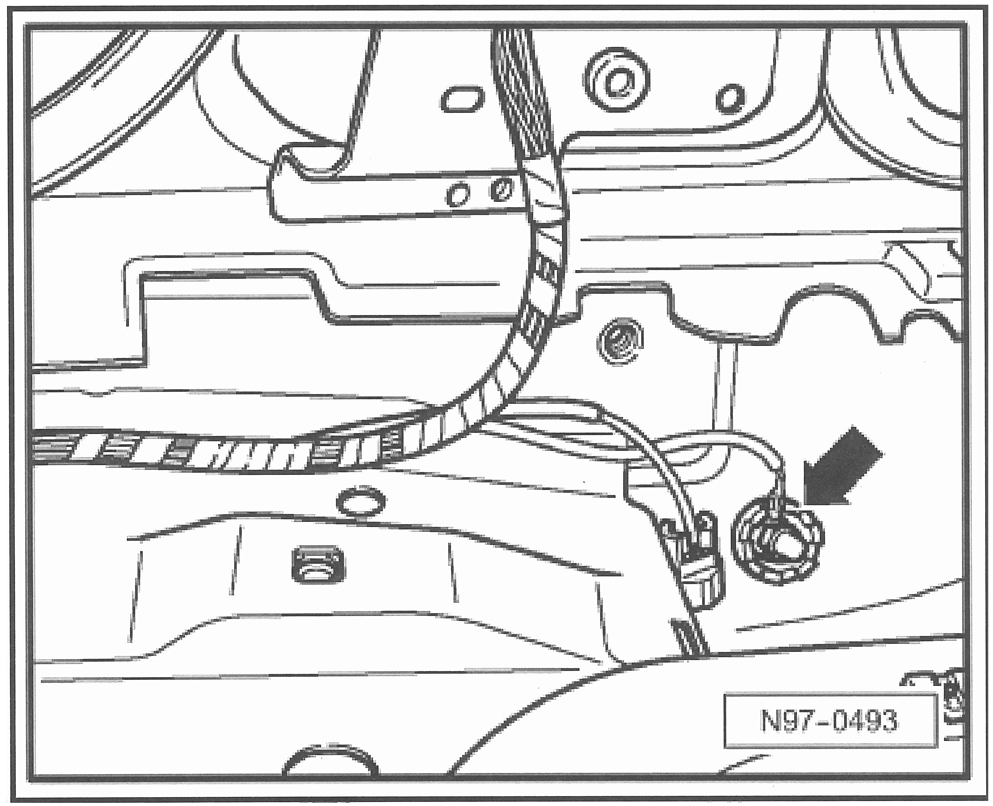

Fig 132: Left "B" Pillar

G00478869

Courtesy of VOLKSWAGEN UNITED STATES, INC.

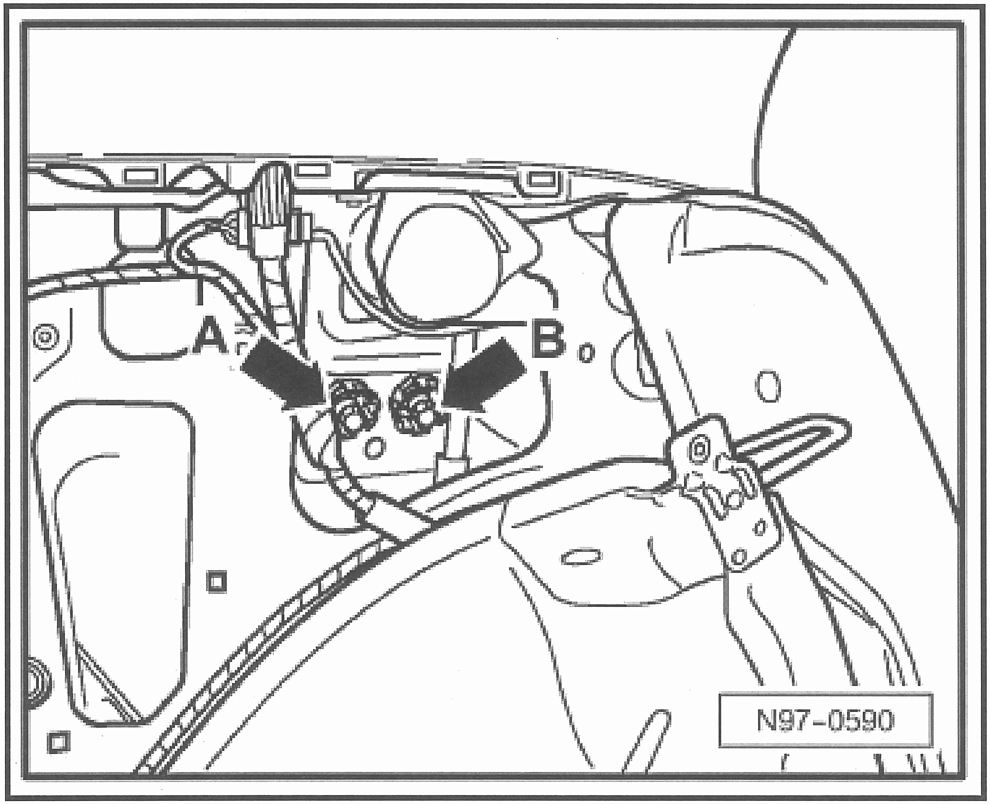

Fig 133: Left Side Of Luggage Compartment

G00478872

Courtesy of VOLKSWAGEN UNITED STATES, INC.

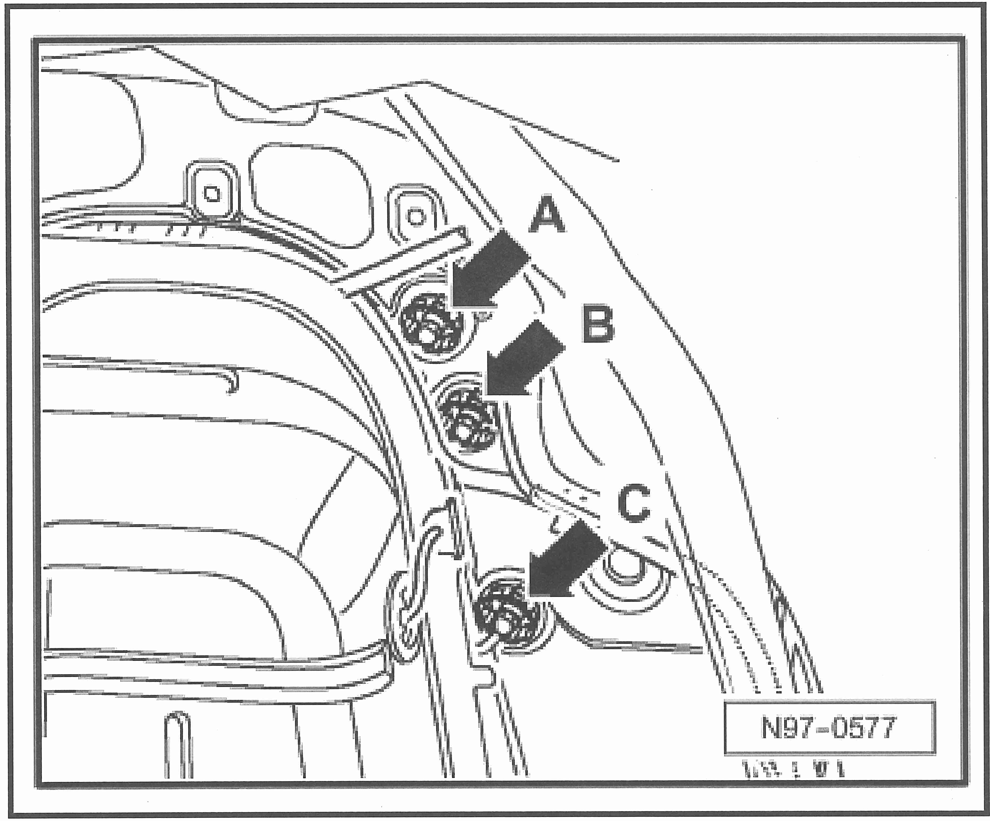

Fig 134: Right Side Of Luggage Compartment

G00478873

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 135: Electronics Box Low

G00478874

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 136: Left Side Of Luggage Compartment

G00478876

Courtesy of VOLKSWAGEN UNITED STATES, INC.

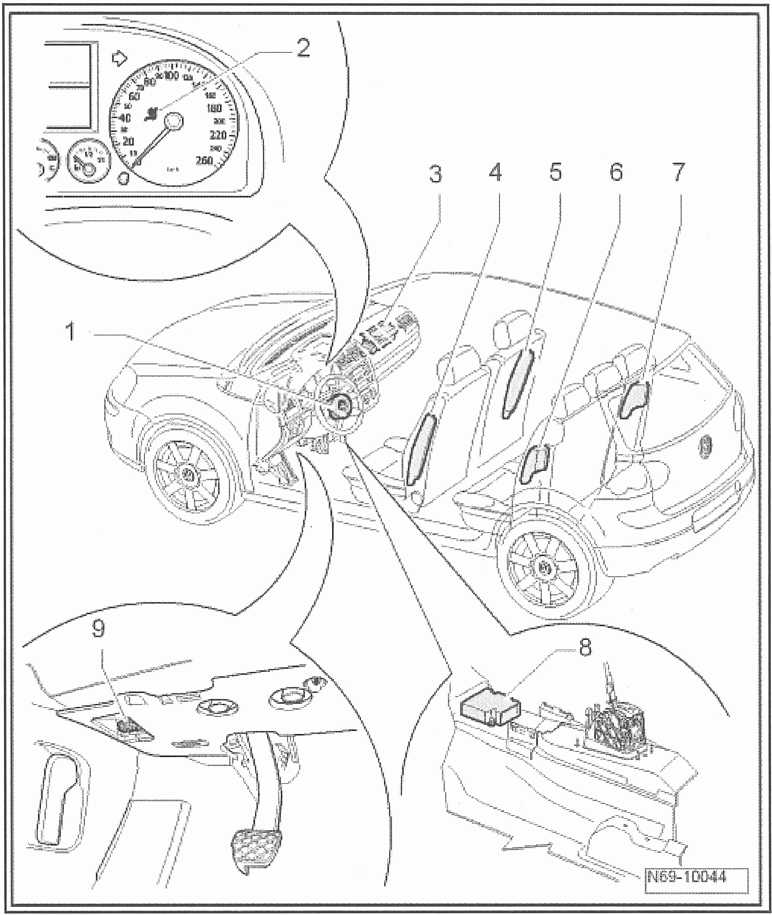

Fig 137: Vehicle Overview (Airbag System)

G00478877

Courtesy of VOLKSWAGEN UNITED STATES, INC.

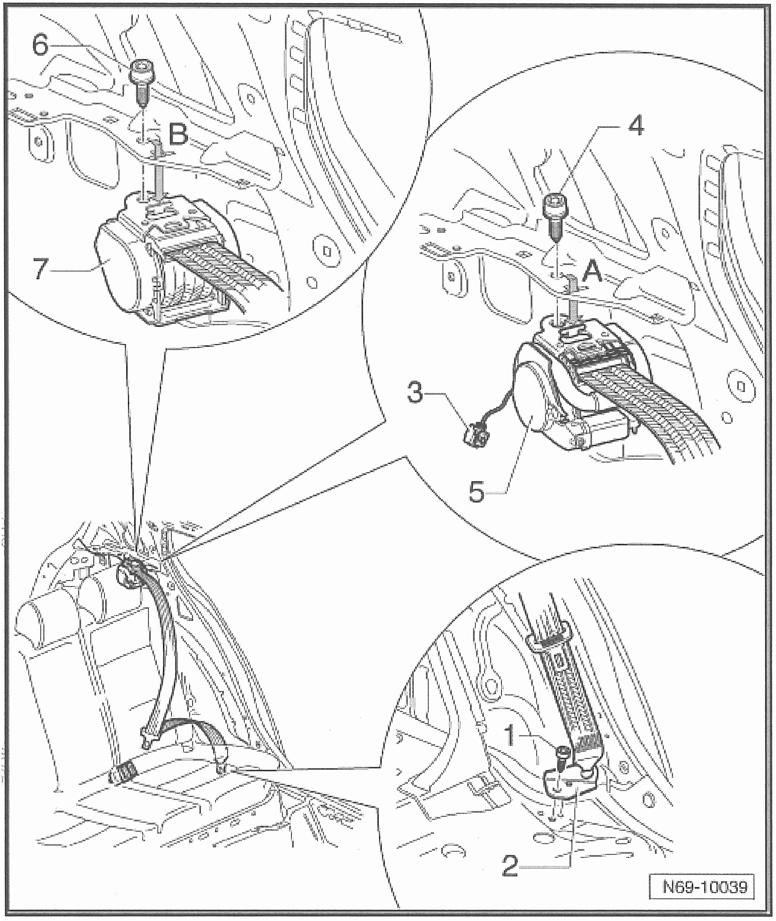

Fig 138: Left "C" Pillar (Right Similar)

G00478879

Courtesy of VOLKSWAGEN UNITED STATES, INC.
