Ignition System Overview
NOTE:
The engine speed sensor is located on the cylinder block. See -item 10- in the COMPONENT LOCATION OVERVIEW - FUEL INJECTION SYSTEM Part 1.

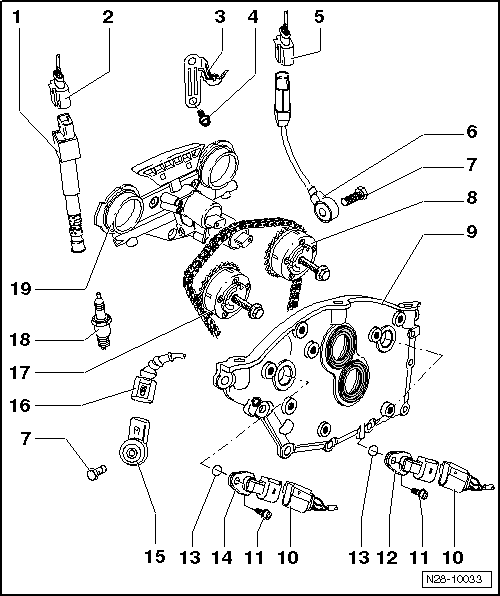

- Ignition Coil with Power Output Stage -N70, N127, N291, N292, N323, N324-
- Removing and installing, refer to IGNITION COILS WITH POWER OUTPUT STAGES .
- Connector
- Black
- Use the Assembly Tool T10118 to disconnect.
- Bracket
- For the knock sensor 1 connector.
- Bolt
- 20 Nm
- Connector
- Black, 3 pin.
- Connector contacts and sensor contacts are gold plated.
- Knock Sensor 1 - G61-
- Installed location: Exhaust side of the cylinder block.
- Bolt
- 20 Nm
- Tightening specification affects the function of the knock sensor.
- Exhaust Camshaft Adjuster
- Identification: 32A
- With the sensor wheel for the camshaft position sensor 2.
- Removing and installing, refer to CAMSHAFT ADJUSTER .
- Cover
- Connector
- Black, 3 pin
- Connector contacts and sensor contacts are gold plated.
- mark the connector before disconnecting
- Bolt
- 10 Nm
- Camshaft Position Sensor 2 - G163-
- For the exhaust camshaft.
- Connector contacts and sensor contacts are gold plated.
- Seal
- Always replace.
- Camshaft Position Sensor - G40-
- For the intake camshaft
- Connector contacts and sensor contacts are gold plated.
- Gold plated sensor contacts and connector contacts
- Knock Sensor 2 - G66-
- Installed location: Intake side of the cylinder block.
- Connector contacts and sensor contacts are gold plated.
- Connector
- Black, 2 pin
- Connector contacts and sensor contacts are gold plated.
- Intake Camshaft Adjuster
- Identification: 24E
- With the sensor wheel for the camshaft position sensor.
- Removing and installing, refer to CAMSHAFT ADJUSTER .
- Spark Plug
- 18 Nm
- Remove and install using the spark plug removal tool 3122 B.
- Type and electrode ga, refer to TEST DATA AND SPARK PLUGS .
- Control Housing
- For the camshaft adjustment.
