Camshaft Position Sensor, Checking

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram.

Test requirements

• The Engine Control Module (ECM) - J623- fuses OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground connections between engine/transmission/chassis OK.
• Ignition switched OFF.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK

Start diagnosis

-- Remove the engine cover. Refer to the Repair information.

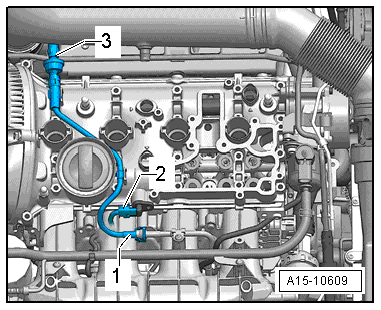

-- Disconnect the Camshaft Position Sensor electrical harness connector -2-.

-- Switch the ignition ON.

-- Using a multimeter, Check the Camshaft Position (CMP) Sensor -G40- electrical harness connector terminals 1 to 3 for voltage.

Specified value: near 5.0 V

-- Switch the ignition OFF.

If the specified value was Not obtained:

Checking wiring

-- Remove the Engine Control Module (ECM) -J623-. Refer to the Repair information.

-- Using a multimeter, Check the Camshaft Position (CMP) Sensor -G40- electrical harness connector to the Engine Control Module (ECM) electrical harness connector T60 for an open circuit.

Camshaft Position (CMP) Sensor -G40- electrical harness connector terminals:	Engine Control Module (ECM) electrical harness connector T60 terminals:
1	29
2	53
3	8

Specified value: 1.5 Ω Max.

If the specified value was Not obtained:

-- Check the wiring connection for an open circuit, high resistance, short circuit to Battery positive or Ground.

-- Check the wiring connection for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and voltage supply was OK:

-- Replace the Camshaft Position (CMP) Sensor -G40-. Refer to the Repair information.

If no malfunction is found in the wiring and voltage supply was Not OK:

-- Replace the Engine Control Module (ECM) -J623-. Refer to the Repair information.

-- Install the engine cover with air filter. Refer to the Repair information.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
