Fuel Pressure Sensor, Checking

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram.

Test requirements

• The Fuel Pump (FP) Control Module -J538- OK.
• The Engine Control Module (ECM) - J623- fuses OK.
• The fuel filter OK.
• The battery voltage at least 12.5 V.
• All electrical consumers switched off (radiator fan must NOT run during test).
• A/C switched off.
• The fuel tank at least ¹ /₄ filled.
• The ignition switched OFF.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK

Start diagnosis

-- Remove the engine cover. Refer to the Repair information.

Checking voltage

-- Disconnect the Fuel Pressure Sensor -G247- electrical harness connector.

-- Switch the ignition ON.

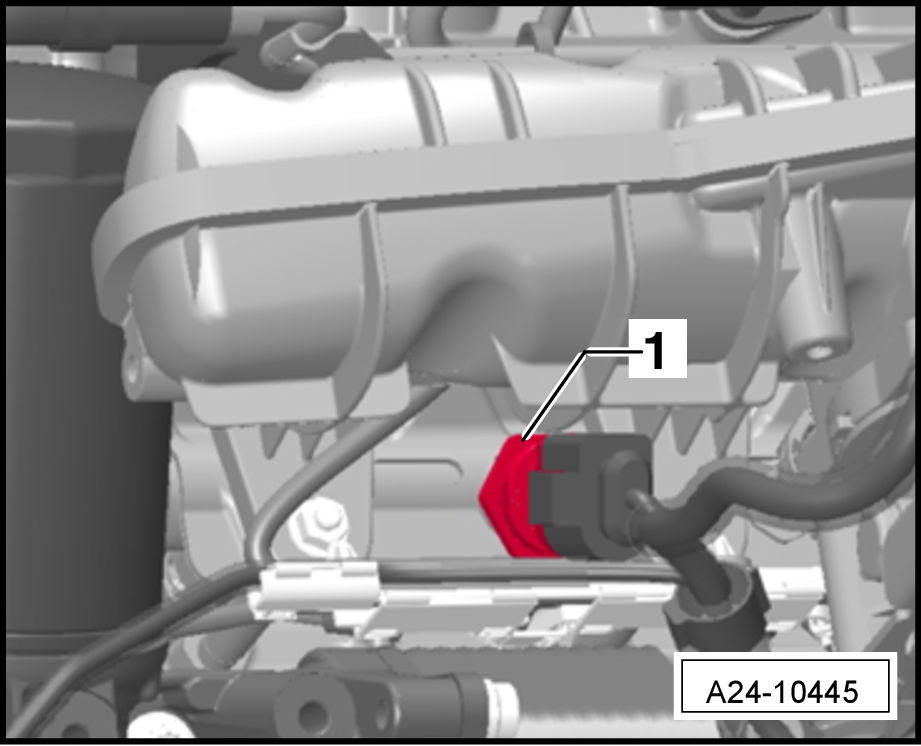

-- Using a multimeter, check the Fuel Pressure Sensor -G247- view -1- electrical harness connector terminals for voltage.

Fuel Pressure Sensor -G247- electrical harness connector terminals	Specified value
1 to Battery Positive (B+)	Battery Voltage
2 to Ground	4.8 - 5 Volts
3 to Ground	5 Volts

-- Switch the ignition OFF.

If the specified value was obtained:

-- Replace the Fuel Pressure Sensor -G247- : Refer to the Repair information.

If the specified value was Not obtained:

Checking wiring connections

-- Remove the Engine Control Module (ECM) -J623-. Refer to the Repair information.

-- Using a multimeter, check the Fuel Pressure Sensor -G247- electrical harness connector terminals to the Engine Control Module (ECM) -J623- electrical harness connector T60 terminals for an open circuit according to the wiring diagram.

Fuel Pressure Sensor -G247- electrical harness connector terminals:	Engine Control Module (ECM) -J623- electrical connector T60 terminals:
1	13
2	40
3	29

Specified value: 1.5 Ω Max.

If the specified value was Not obtained:

-- Check the wiring for an open, high resistance or short to ground.

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If the specified value was obtained:

-- Replace the Engine Control Module (ECM) -J623-. Refer to the Repair information.

-- Install the engine cover. Refer to the Repair information.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
