Abs Control Module -J104-, Separating From Abs Hydraulic Unit -N55- (Mark 70 Abs/ASR)

Special Tools And Workshop Equipment Required

• Mini Torque Wrench :VAS6854
• ESD Work Surface :VAS6613

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install the transportation protection for the valve domes on the ABS Hydraulic Unit -N55- after separating the ABS Control Module -J104- from the ABS Hydraulic Unit -N55-.

The warranty on the ABS Hydraulic Unit -N55- will not be honored if the transportation protection is missing.

1. Transportation Protection for Valve Body (Foam)
2. M10 Plug
3. M12 Plug

-- Remove the ABS Hydraulic Unit -N55- together with the ABS Control Module -J104-. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .

-- Place the ABS Hydraulic Unit -N55- and the ABS Control Module -J104- on a clean level surface facing upward.

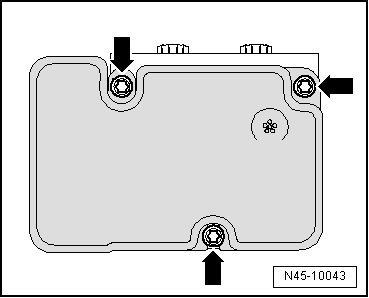

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ABS Control Module -J104- from the ABS Hydraulic Unit -N55- in the direction of -arrow- without tilting it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully remove all the seals from the valve domes on the ABS Hydraulic Unit -N55-.

-- Cover the solenoid coils of the ABS Control Module -J104- with a lint-free cloth.

Use the valve body transportation protection after disconnecting the ABS Control Module -J104- and the ABS Hydraulic Unit -N55-.

Installing. Refer to ABS Control Module -J104-, ATTACHING TO ABS Hydraulic Unit -N55- (MARK 70 ABS/ASR) .
