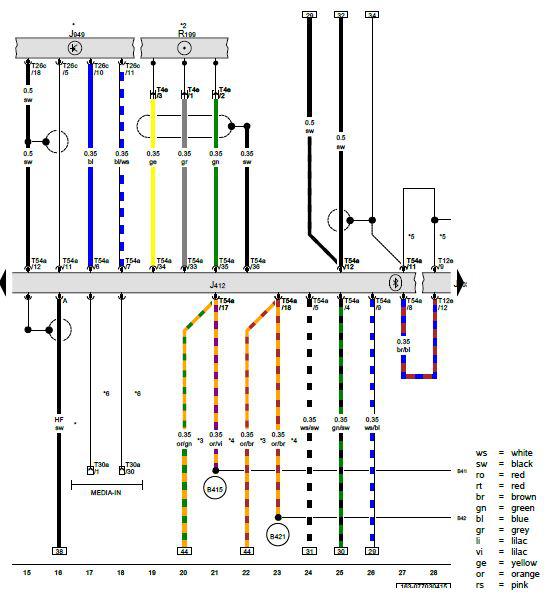

Cell Phone Operating Electronics Control Module, Radio/ Navigation Display Unit Control Module, External Audio Source Connection
J412 Cell phone operating electronics control module
J503 Radio/navigation display unit control module
J949 Control module for emergency call module and communication unit
R199 External audio source connection
T4e 4-pin connector
T12e 12-pin connector
T26c 26-pin connector
T30a 30-pin connector
T54a 54-pin connector
B415 Infotainment CAN Bus high connection 1 (in main wiring harness)
B421 Infotainment CAN bus low connection 1 (in main wiring harness)
* Depending on equipment
*2 Only for vehicles with external multimedia device connection with electrical interface
*3 only for vehicles with Low equipment (AW0)
*4 only for vehicles with High equipment (AW1)
*5 Only with radio navigation system and voice recognition system
*6 Adapter cable
