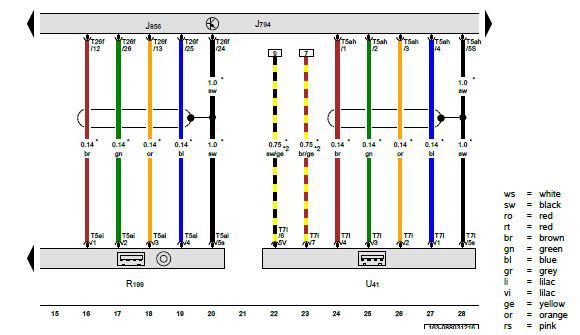

Information Electronics Control Module 1, Navigation System Control Module, External Audio Source Connection, USB Connection 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794  nformation electronics control module 1

J856  Navigation system control module

R199  External audio source connection

T5ah  5-Pin connector

T5ai  5-Pin connector

T7i  7-Pin connector

T26f  26-Pin connector

U41  USB connection 1

*  Depending on equipment

*2  Diameter depends on equipment
