Overview - Navigation System, RNS 315+: Notes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Familiarity with the function and operation is needed if there are customer concerns. Refer to the appropriate information..

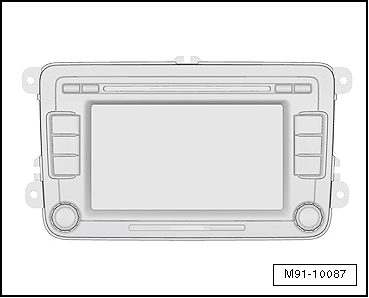

The RNS 315+ radio/navigation system has the following:

• Display: 5 inch color display
• Integrated CD player
• SD Memory Card Reader
• UHV Low/Premium
• Navigation function using a 3D card and language
• CD/SD Navigation (Navigation without a CD inserted)
• 4 speaker channels, each with 20 W
• Connection for Multimedia System Control Module -J650-
• Connection for the External Audio Source Connection -R199-
• Connection for an external CD Changer -R41-
• Connection for external sound amplifier (Amplifier -R12-)
• USB Connection
• OPS (Optical Parking System)
• Air Conditioning (A/C) information shown in the radio display
• Optional support for the multifunction steering wheel
• Convenience coding
• An optional universal cellular telephone preparation (UHV) with an integrated Bluetooth^® antenna

It is not possible to play the following CD formats:

• CD with 8 cm diameter
• "Mix CDs" (CDs containing files and audio files)

The RNS 315+ is equipped with On Board Diagnostic (OBD).
