Brake And Clutch System, Changing Brake Fluid: Notes

Special Tools And Workshop Equipment Required

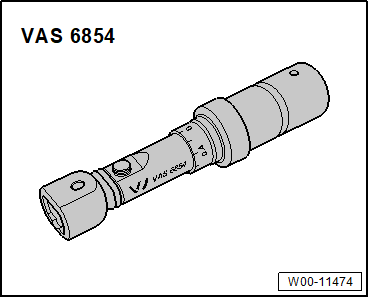

Mini Torque Wrench :VAS6854

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Brake Charger/Bleeder Unit :VAS5234

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Brake Filling and Bleeding Equipment :VAS6860

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Brake Bleeding Tool Set - Insert Tool :VAS6564/9

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Brake Bleeding Tool Set :VAS6564

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Brake fluid must never come into contact with fluids containing mineral oils (oil, gas, cleaning solutions). Oils containing minerals damage seals and rubber grommets on brake systems.
Brake fluid is poisonous. Do not let brake fluid come in contact with the paint due to is corrosive effects.
Brake fluid is hygroscopic, which means that it absorbs moisture from the air. Always store brake fluid in air-tight containers.
Wash off any spilled brake fluid with plenty of water.
Do not use extracted (used) brake fluid again!
Follow all disposal regulations.
