Coolant Level, Checking And Adding Coolant Additive
CAUTION:
Use only distilled water for mixing coolant additives. By using distilled water the optimum corrosion protection can be reached.

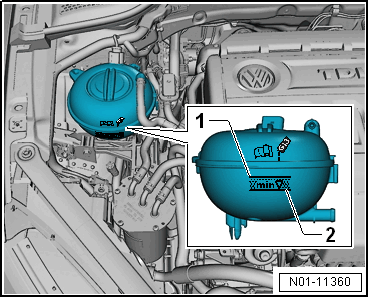

-- Check the coolant level in the reservoir when the engine is cold.
- Pre-delivery inspection: coolant level to the mark -1-.
- At the pre-delivery inspection a coolant level above the mark -1- is permitted.
- Extracting the increased coolant level is not necessary because the coolant level can be lowered on new vehicles through the venting process.
- Inspection service: coolant level above "min marking" -2-.
-- If coolant level is too low, add the missing amount according to the mixture ratio.
NOTE:
Determine cause of fluid loss, which cannot be attributed to normal use and repair (repair procedure).
