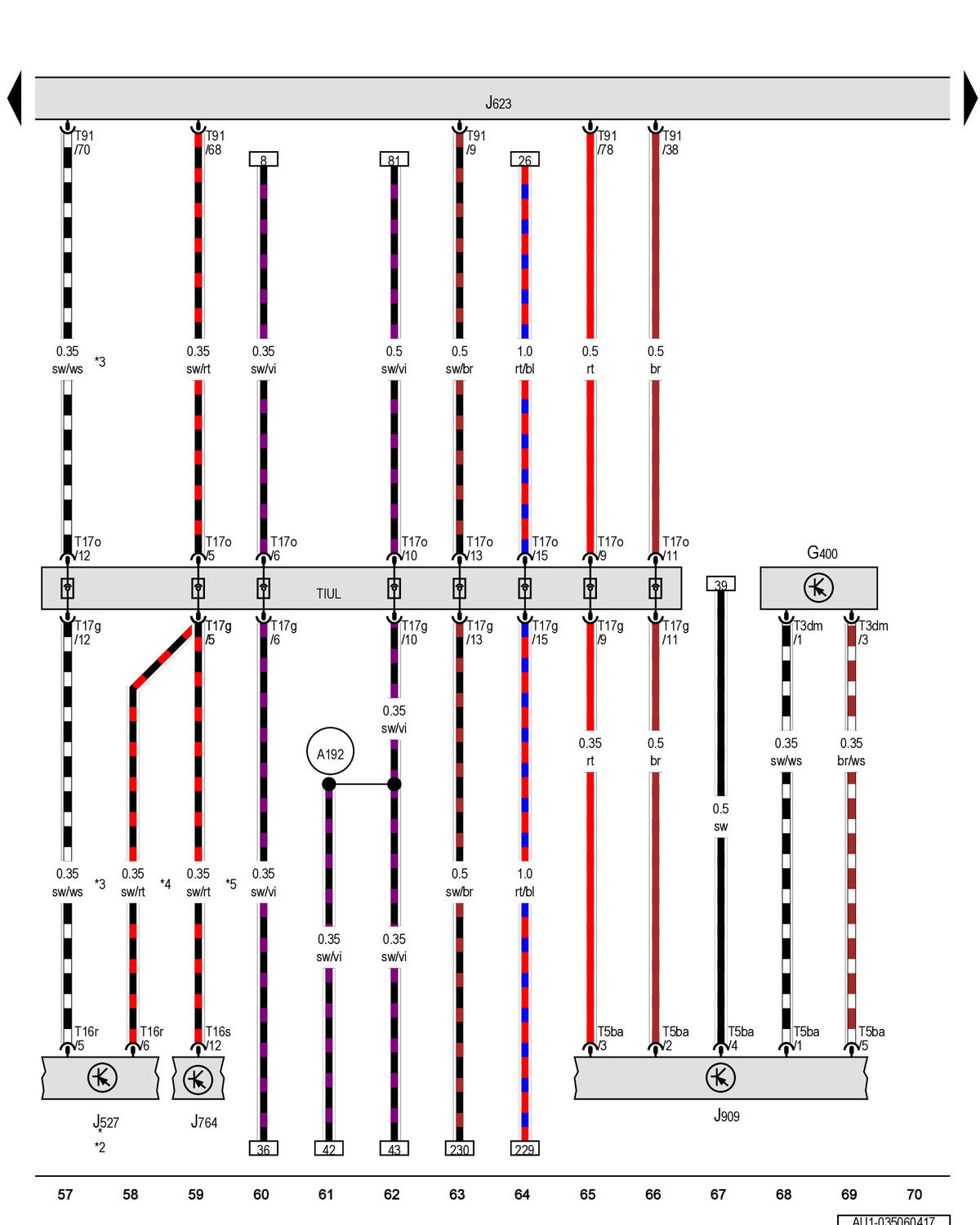

Steering Column Electronics Control Module, Engine Control Module, Electronic Steering Column Lock Control Module: Notes

GWWAU1-035060417Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
