Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, EGOLF: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the cargo floor in the luggage compartment.

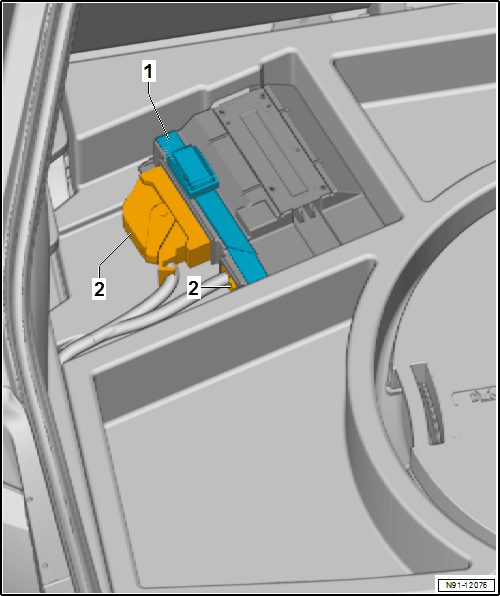

-- Loosen the tensioning strap -1- and release and disconnect the connectors -2- from the Digital Sound System Control Module -J525-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9  -1- onto the MOST bus connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Digital Sound System Control Module -J525-.
