Tightening Specifications

Component Tightening Specification
Bolt -4- to bracket 3 Nm

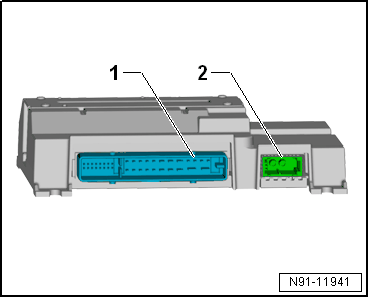

Connectors to Digital Sound System Control ModuleJ525

GWWN91-11941Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Multi-pin connector, 38-pin
  2. MOST bus, 2-pin
