Front Side Window, Removing And Installing: Notes

WARNING:

Always wear protective eyewear and leather gloves.

NOTE:

The :VAS6452/1 is used to remove the front side window.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, pull the trim molding from the seal.

The surrounding components are to be protected from damage.

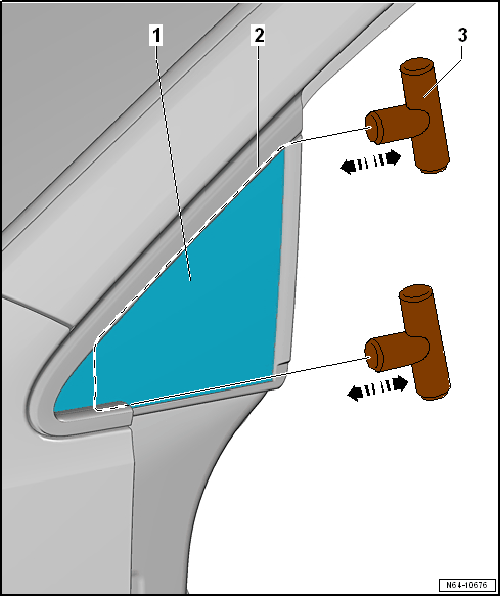

-- Place the cutting wire -2- around the front side window -1-.

-- Secure the cutting wire ends with the :VAG1351/1 -3-.

-- Cut through the adhesive bead using "sawing" movements in direction of -arrows- with the :VAG1351/1 .
