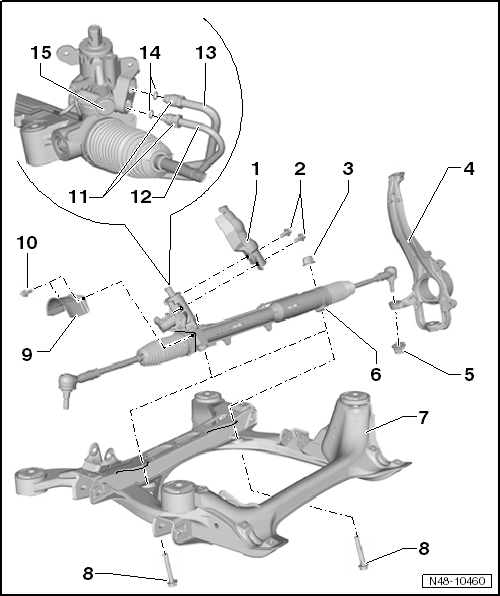

Power Steering Assembly Overview, RHD: Notes
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Heat Shield
- Hex bolt
- 10 Nm
- Self-Locking Nut
- Always replace if removed
- Wheel Bearing Housing
- Tapered holes must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- For the allocation. Refer to the Parts Information.
- Self-Locking Nut
- 90 Nm
- Always replace if removed
- Power Steering Gear
- Removing and installing. Refer to POWER STEERING GEAR, REMOVING AND INSTALLING, RHD .
- Subframe
- Hex bolt
- 90 Nm +90° additional turn
- Always replace if removed
- Heat Shield
- Hex bolt
- 9 Nm
- Bolt
- 30 Nm
- Return Line
- Pressure Line
- Seal
- Always replace
- Servotronic Solenoid Valve -N119-
