Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Install the Power Adjustable Steering Column Control Module -J866- -1- with the pin into the groove -arrow- on the steering column.

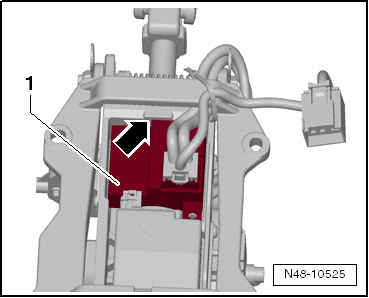

Fig 1: Identifying Power Adjustable Steering Column Control Module -1- And Groove -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt.

If a power adjustable steering column is replaced, the Power Adjustable Steering Column Control Module -J866- is already installed on the new steering column and does not need to be modified.

If the Power Adjustable Steering Column Control Module -J866- was replaced, the Power Adjustable Steering Column Control Module -J866- must be adapted.

Use the Vehicle Diagnostic Tester.

Body

Electrical System

01_OBD-capable systems

09 Vehicle electrical system control module J519

09 Vehicle electrical system control module functions

J866- Coding the power adjustable steering column control module

Follow the instructions on the screen to perform the adaptation.

Perform a basic setting if the Power Adjustable Steering Column Control Module -J866- was replaced.

Use the Vehicle Diagnostic Tester.

Body

Electrical System

01_OBD-capable systems

09 Vehicle electrical system control module J519

09 Vehicle electrical system control module functions

J866- Power adjustable steering column control module - basic setting

Follow the instructions on the screen to perform the basic setting.

Tightening Specification

Component	Tightening Specification
Power Adjustable Steering Column Control Module -J866- to steering column	5 Nm
