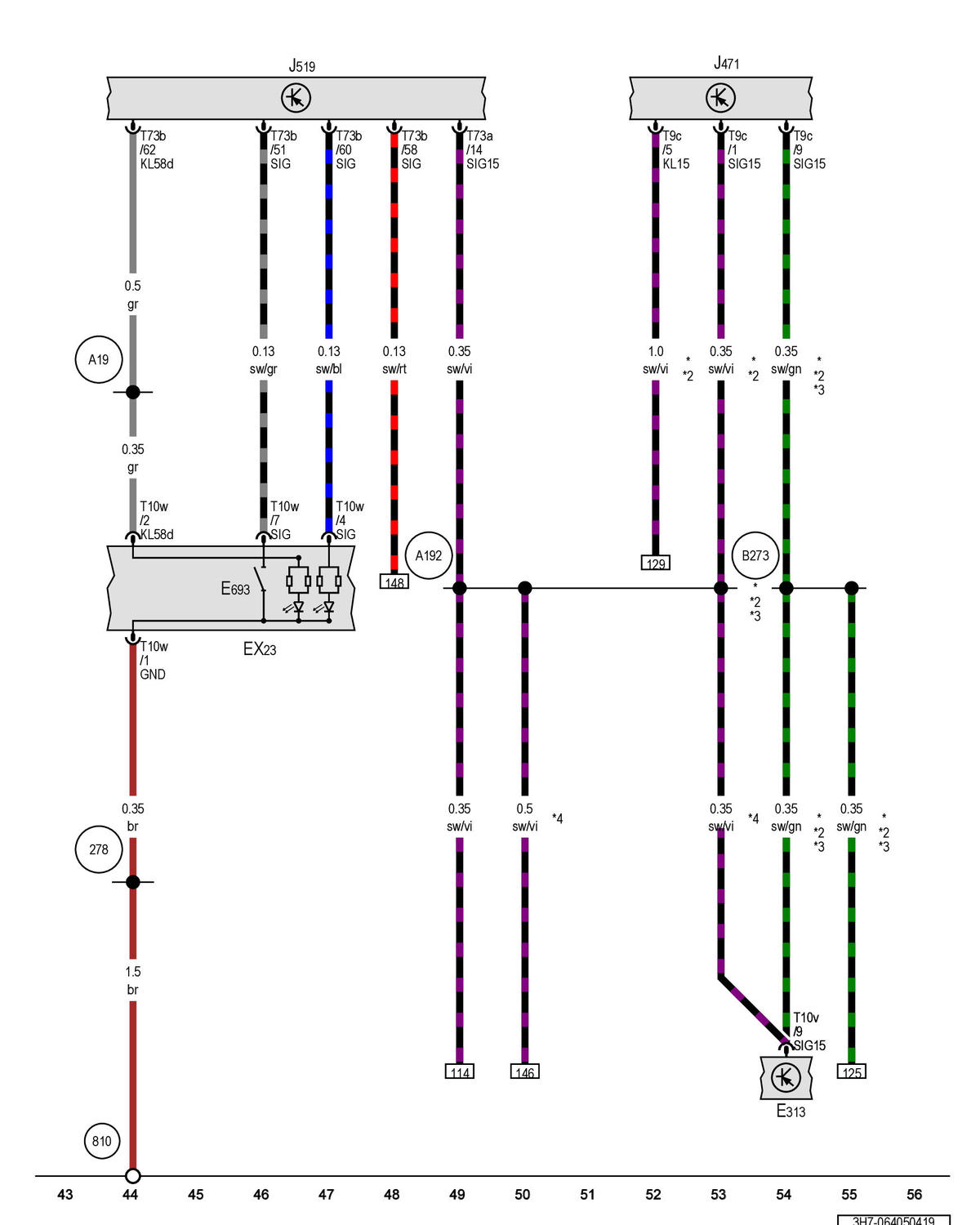

Center Console Switch Module 1, Selector Lever, Remote Start System Relay, Vehicle Electrical System Control Module: Notes

GWW3H7-064050419Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
