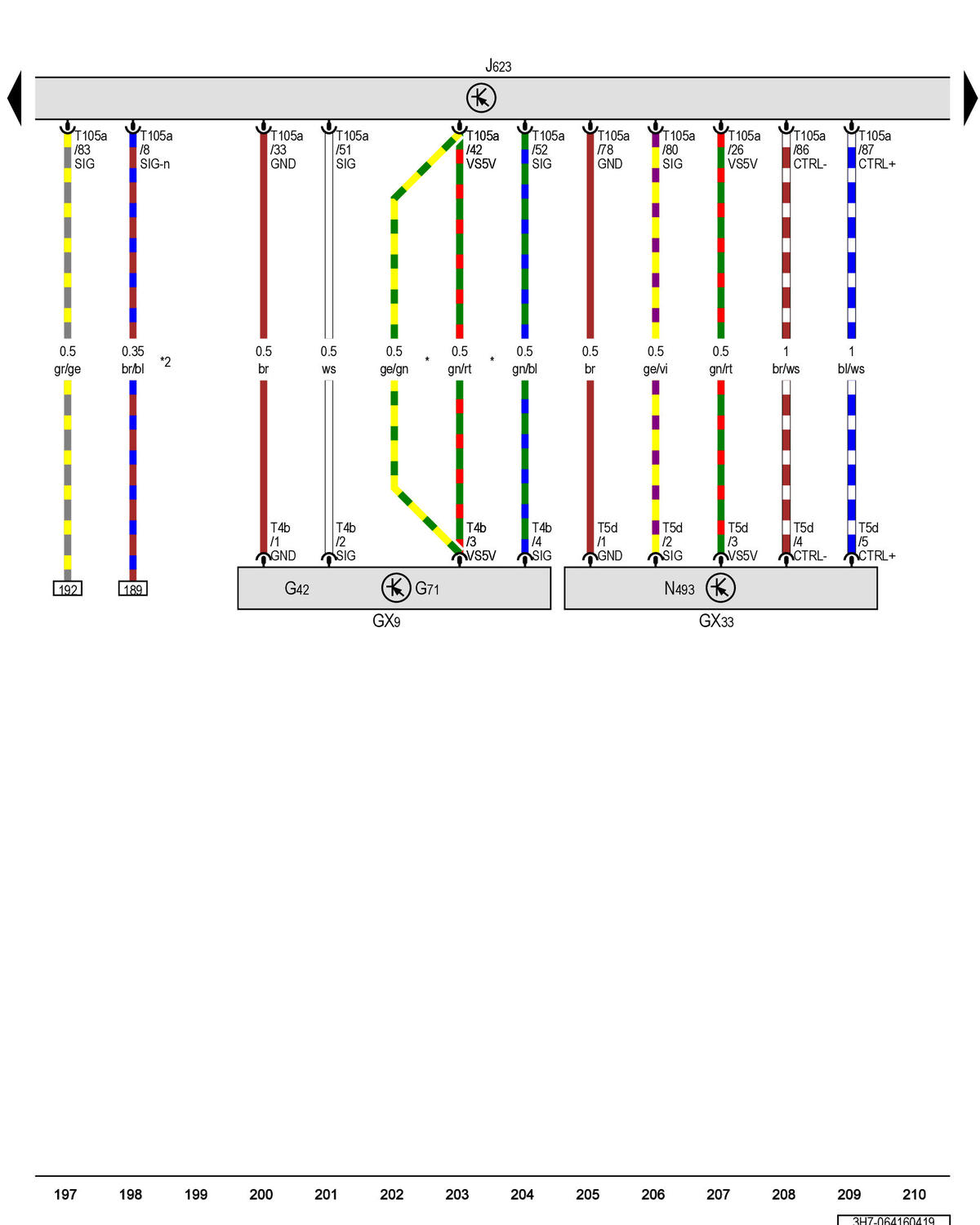

Intake Manifold Sensor, Engine Temperature Control Module, Engine/Motor Control Module, Engine Temperature Control Actuator: Notes

GWW3H7-064160419Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
