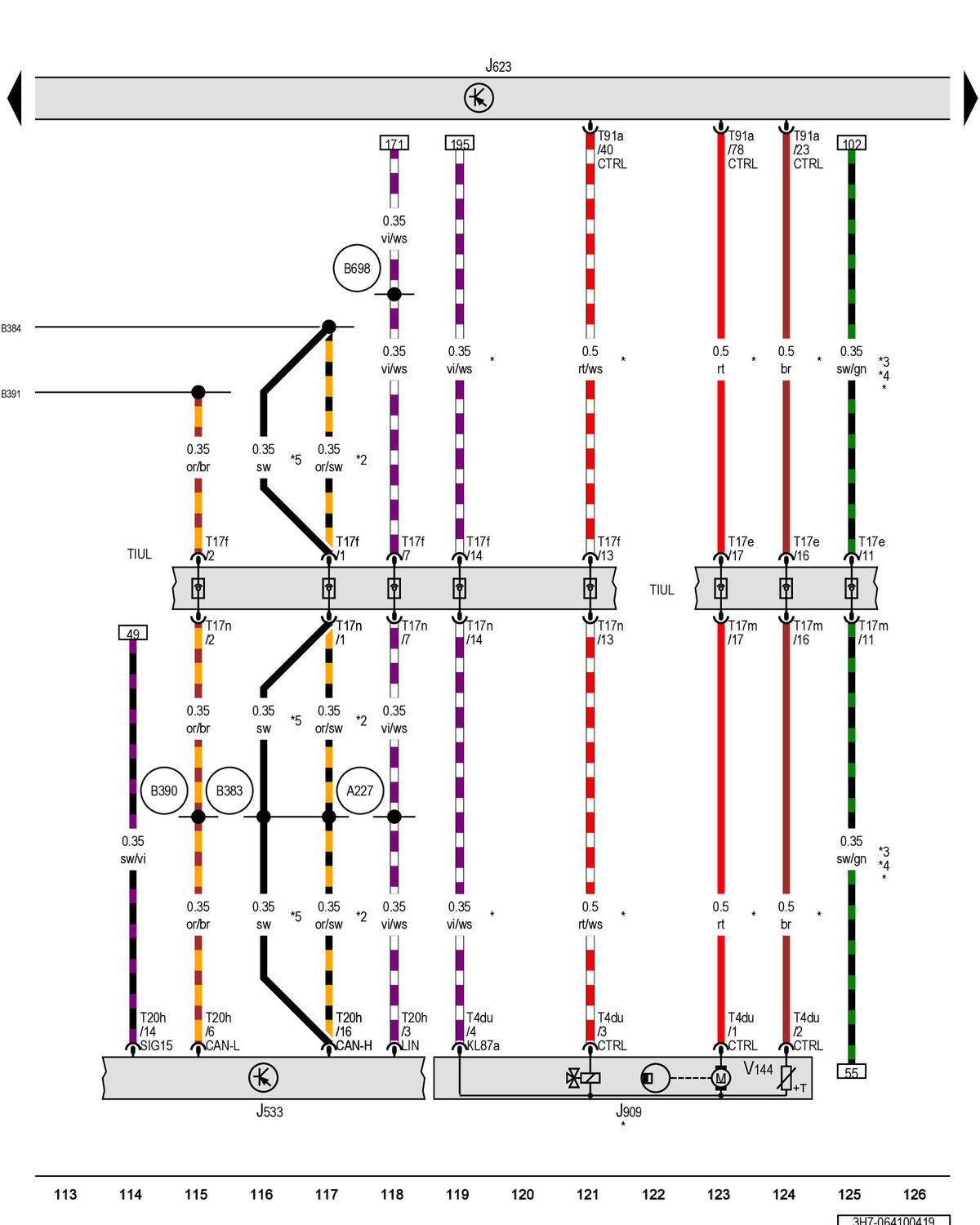

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

GWW3H7-064100419Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
