Cylinder Numbering

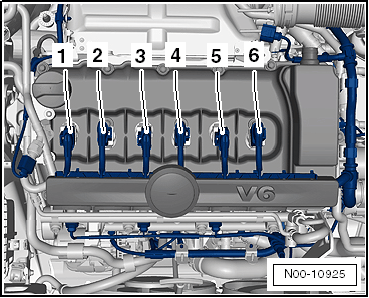

Fig 1: Identifying Cylinder Numbering
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:
Cylinder 1 is located opposite the force producing side.
Ignition sequence
1-5-3-6-2-4
