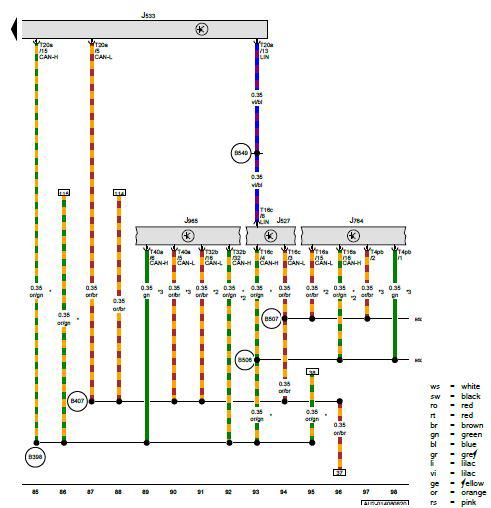

Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Electronic Steering Column Lock Control Module, Access/Start System Interface
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
J764 - Electronic Steering Column Lock Control Module
J965 - Access/Start System Interface
T4pb - 4-Pin Connector
T16c - 16-Pin Connector
T16s - 16-Pin Connector
T20a - 20-Pin Connector
T32b - 32-Pin Connector
T40a - 40-Pin Connector
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
* - The Color of the Wires Depends on Vehicle Equipment
*2 - Through September 2018
*3 - From September 2018
