Electronic Steering Column Lock Control Module -J764-, Removing And Installing: Removing

-- Remove the steering column. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

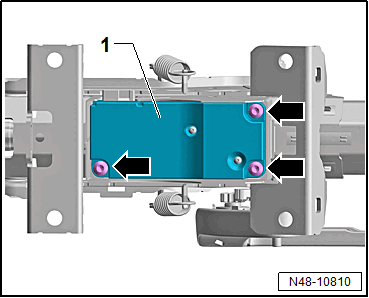

-- Remove the bolts -arrows- from the Electronic Steering Column Lock Control Module -J764-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

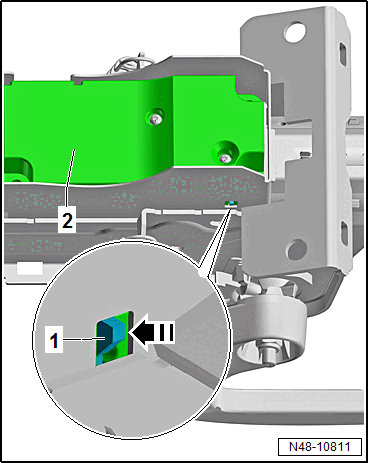

-- Push the tab -1- in the direction of the -arrow-. Remove the Electronic Steering Column Lock Control Module - J764- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
