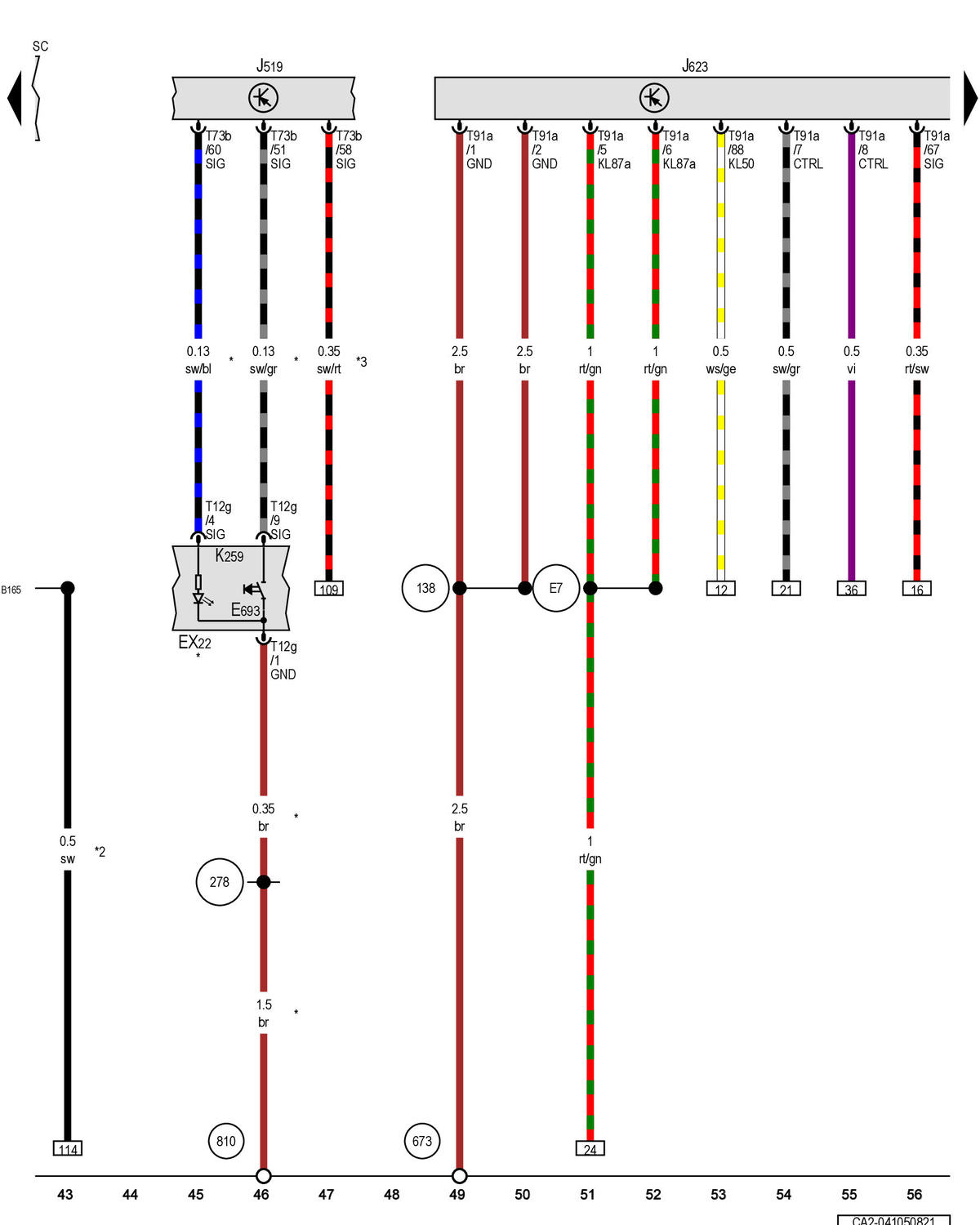

Center Instrument Panel Switch Module, Vehicle Electrical System Control Module, Engine/Motor Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX22

Center Instrument Panel Switch Module Type:BT, Slpdok:, Aim:BTEX22

E693

Start/Stop Mode Button

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

K259

Start/Stop Mode Indicator Lamp

SC

Fuse Panel C Type:BT, Slpdok:, Aim:BTSC-

T12g

12-Pin Connector, Black

T73b

73-Pin Connector, Black

T91a

91-Pin Connector, Black

138

Control Module Ground Connection (in Motronic Multiform Fuel Injection Wiring Harness)

278

Ground Connection 4 (in Interior Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member Type:VB, Slpdok:, Aim:VB673

810

Ground Connection on Left Center Instrument Panel Central Tube Type:VB, Slpdok:, Aim:VB810

B165

Positive Connection 2 (15) (in Interior Wiring Harness)

E7

Connection 87a (in Motronic Multiform Fuel Injection Wiring Harness)

*

Depending on Equipment

*2

For Vehicles with Engine Remote Start Setup

*3

For Vehicles Without Trailer Mode; Refer to Trailer Mode Wiring Diagram for Vehicles with Trailer Mode
