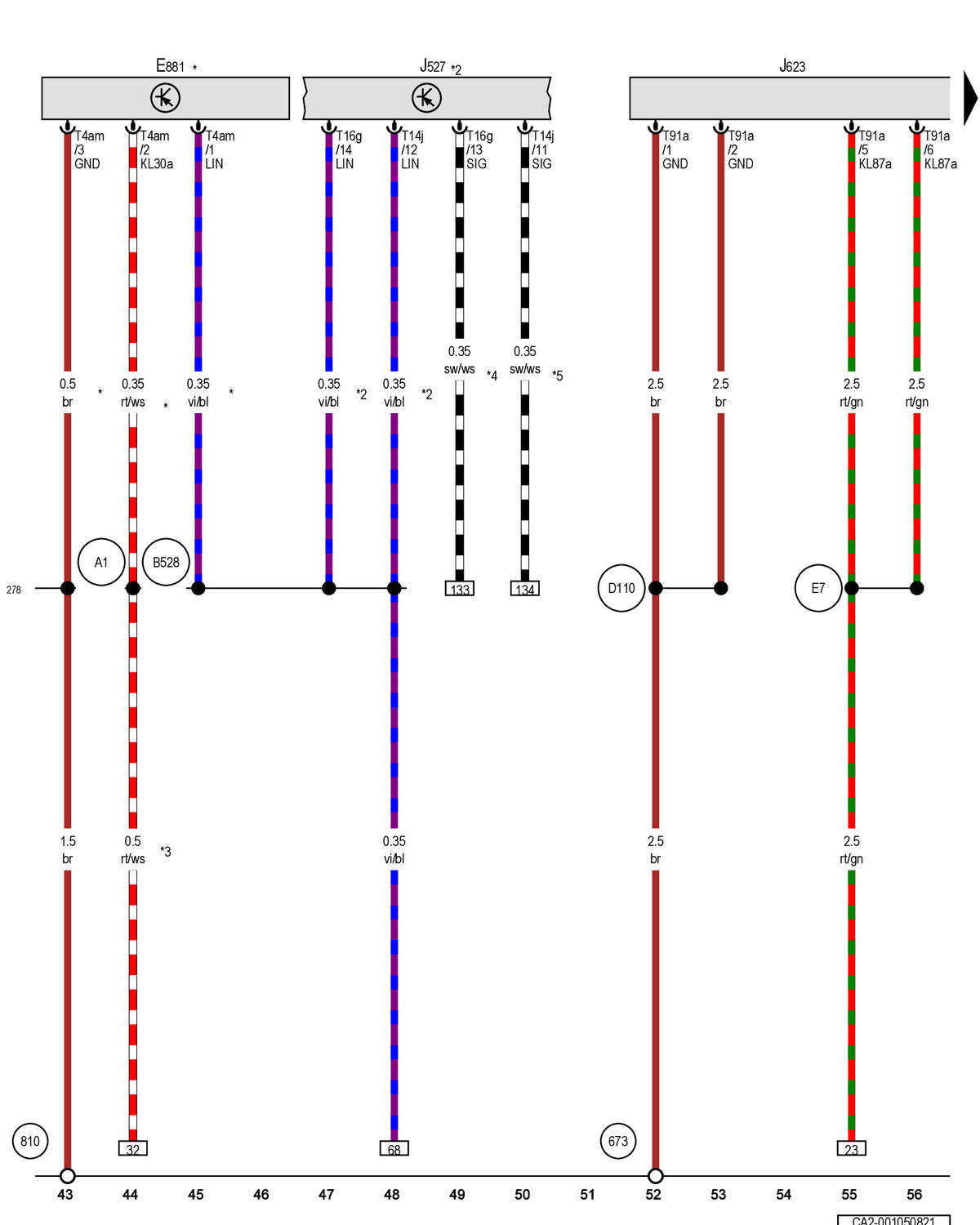

Driving Profile Selection Control Head, Steering Column Electronics Control Module, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E881

Driving Profile Selection Control Head Type:BT, Slpdok:, Aim:BTE881

J527

Steering Column Electronics Control Module Type:BT, Slpdok:, Aim:BTJ527

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T4am

4-Pin Connector, Black

T14j

14-Pin Connector, Black

T16g

16-Pin Connector, Black

T91a

91-Pin Connector, Black

278

Ground Connection 4 (in Interior Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member Type:VB, Slpdok:, Aim:VB673

810

Ground Connection on Left Center Instrument Panel Central Tube Type:VB, Slpdok:, Aim:VB810

A1

Positive Connection 30a (in Instrument Panel Wiring Harness)

B528

LIN Bus Connection 1 (in Main Wiring Harness)

D110

Connection 8 (in Engine/Motor Compartment Wiring Harness)

E7

Connection 87a (in Motronic Multiform Fuel Injection Wiring Harness)

*

For AWD Vehicles

*2

Refer to Applicable Wiring Diagram

*3

Diameter Depends on Equipment

*4

For Vehicles Without Heated Steering Wheel

*5

For Vehicles with Heated Steering Wheel
