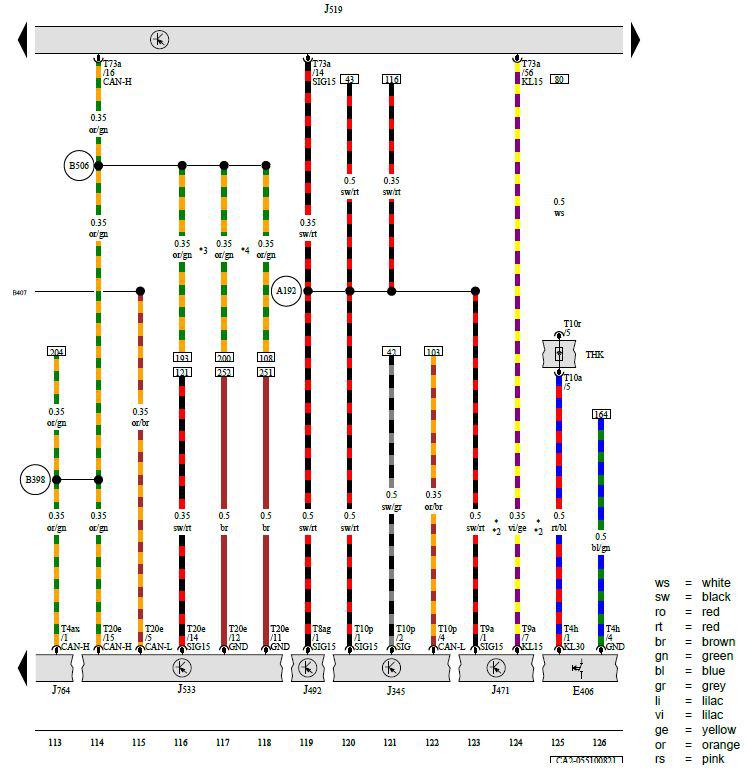

Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface, Electronic Steering Column Lock Control Module
E406 - Rear Lid Lock Button in Luggage Compartment
J345 - Towing Recognition Control Module
J471 - Remote Start System Relay
J492 - All-Wheel Drive Control Module
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
J764 - Electronic Steering Column Lock Control Module
T4ax - 4-Pin Connector, Black
T4h - 4-Pin Connector, Black
T8ag - 8-Pin Connector, Black
T9a - 9-Pin Connector, Gray
T10a - 10-Pin Connector, Black
T10p - 10-Pin Connector, Black
T10r - 10-Pin Connector, Black
T20e - 20-Pin Connector, Red
T73a - 73-Pin Connector, Black
THK - Rear Lid Coupling Point
A192 - Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
* - For Vehicles with Engine Remote Start
*2 - For Vehicles with Engine Remote Start Setup
*3 - For Vehicles without Peripheral Camera
*4 - For Vehicles with Peripheral Camera
