Window Guide, Removing And Installing: Removing

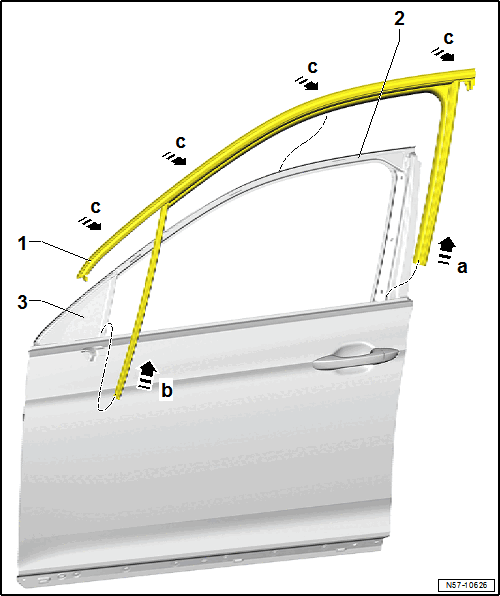

GWWN57-10626Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the window guide trim molding. Refer to TRIM MOLDING, REMOVING AND INSTALLING .

-- Remove the exterior rearview mirror. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Roll the window guide sealing lip -1- off the door flange from the inside.

-- Remove the window guide -1- from the door mounts -a and b arrows-.

-- Remove the window guide -1- from the door flange -2- evenly all around -arrows c-.
