Abs Control Module And Abs Hydraulic Unit, Removing And Installing, Gasoline Engine: Notes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

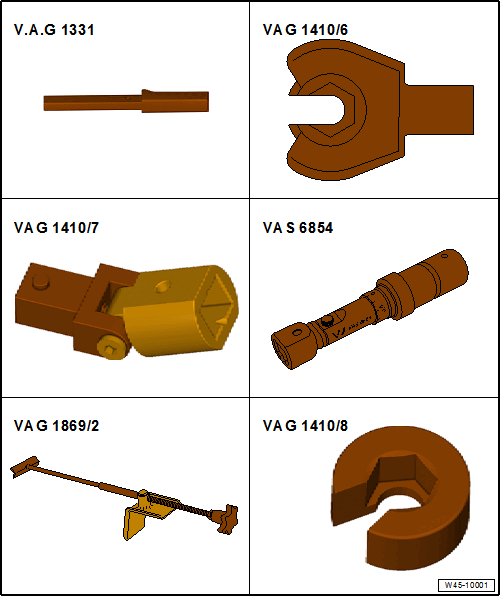

Special tools and workshop equipment required

• Torque Wrench, 6-50Nm: VAG1331A
• Open Ring Spanner Insert - AF 11mm: VAG1410/6
• Torque Wrench - Universal Joint : VAG1410/7
• Mini Torque Wrench: VAS6854
• Brake Pedal Actuator: VAG1869/2  .
• Torque Wrench - Assembly Tool : VAG1410/8

Plugs assembly part 5Q0 698 311

Fig 1: Plug 5 Q 0 698 311

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -  M10 Plug

2 -  M12 Plug
