Abs Control Module And Abs Hydraulic Unit, Removing And Installing, Gasoline Engine: Removing

Component Location:

The control module is bolted to the hydraulic unit and is located at right in the engine compartment.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of destroying the brake lines by bending.

- Never forcefully bend the brake lines in the hydraulic unit area.

-- Read and note the present control module code.

-- On vehicles with a coded radio, note the code. Retrieve it if necessary.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

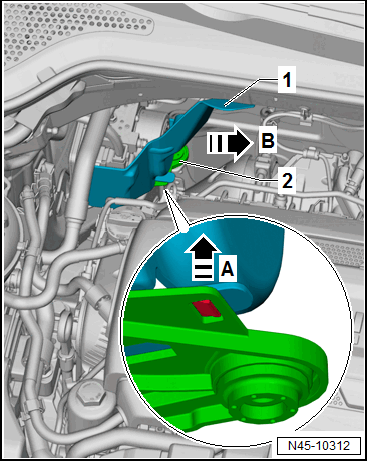

-- For vehicles with a heat shield, remove the heat shield -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the locking mechanism downward in direction of -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the connector in direction of -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector -1-.

-- Insert the : VAG1869/2 .

Fig 1: Identifying Brake Pedal Depressor V.A.G 1869/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the bleeder bottle bleed hose -1- to the left front brake caliper breather valve.

Fig 2: Identifying Bleed Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the breather valve.

-- Attach the bleeder bottle bleed hose -1- to the left rear brake caliper breather valve.

Fig 3: Identifying V.A.G 1869/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the breather valve.

-- Push the brake pedal at least 60 mm using the : VAG1869/2 .

-- Close the left front and left rear bleeder valves.

-- Do not remove the : VAG1869/2 .

NOTE:

Make sure that no brake fluid gets into the contacts.

-- Unclip the brake lines from the bulkhead as far as possible.

-- First, mark both brake lines from the brake master cylinder and remove from the hydraulic unit.

-- Immediately seal the threaded holes with the plugs from the assembly repair kit 5Q0 698 311.

-- Mark the remaining brake lines (brake calipers), remove them and seal off the threaded holes.

-- Place the dust caps for the bleeder valves on the brake lines.

-- Pull the hydraulic unit with the control module upward out of the shock absorbers in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
