Garage Door Opener Control Module, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

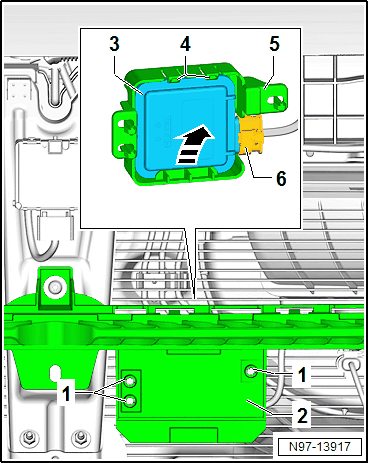

-- Push the catches on the retaining tab -1- together.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time remove the bracket -5- with the garage door opener control module -3- from the center guide -2-.

-- Release and disconnect the connector -6-.

-- Release the retaining tab -4- on the bracket -5-.

-- At the same time remove the garage door opener control module -3- in the -direction of the arrow- from the bracket -5-.
