Window Guide, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Spray the window guide with soapy water to make it easier to install.

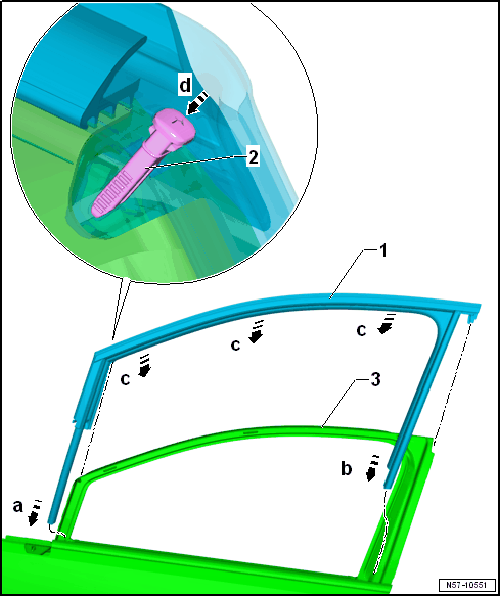

-- Push the window guide -1- in the door mounts -arrow a- and -arrow b-.

-- Install the window guide -1- forward moving along the door flange -3- -c arrows-.

-- Pull the sealing lip on the window guide -1- onto the door flange -3-.

-- Push in the securing pin -2- -arrow d-.

NOTE:

Make sure the window guide -1- fits evenly when installing it (wind noises).

Further installation is the reverse order of removal.
