Abs Sensor Ring, Checking

Special tools and workshop equipment required

• Gauge - Sender Wheel: T10473

Procedure

• The wheel bearing unit is removed.

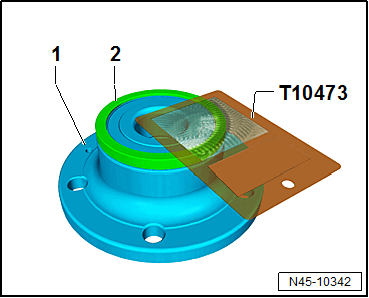

-- Check the entire circumference of the ABS sensor ring -2- with the : T10473  as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -  Wheel Bearing Unit

2 -  Seal with integrated ABS Sensor Ring

ABS sensor ring test diagram.

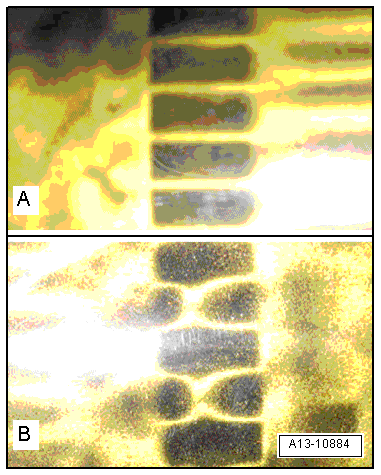

Fig 1: Sensor Wheel Test Diagram

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A -  ABS Sensor Ring is OK

B -  ABS Sensor Ring is Faulty
