Control Module For Adaptive Cruise Control J428, Removing And Installing: Removing

The Control Module for Adaptive Cruise Control -J428- will be called the control module in the information that follows.

If the control module is replaced, the test plan for replacing the control module must be performed.

-- Perform the function "Control Module for Adaptive Cruise Control" using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Open the hood.

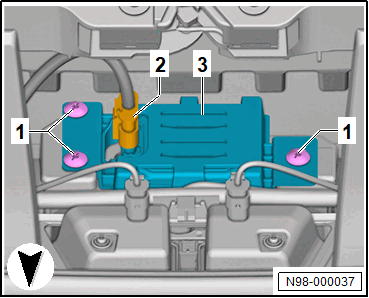

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-.

-- Remove the bracket -3- with the control module.
