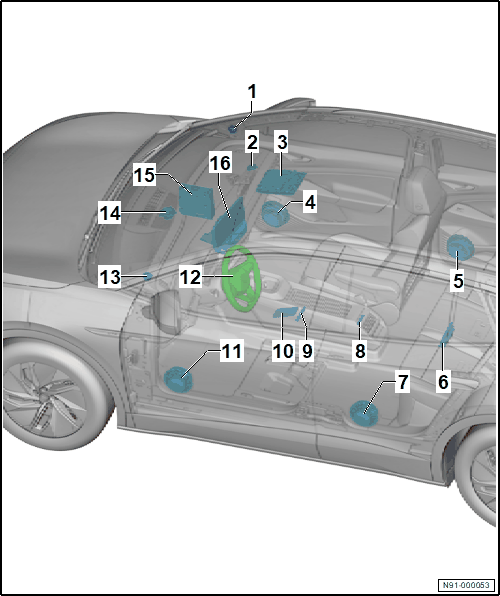

Component Location Overview - Components/Control Modules In Center Section Of Vehicle

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Right Front Treble Speaker -R22-
   • Refer to Left and Right Front Treble Speaker R20/R22, Removing and Installing  .
2. Radio Data Transmission Antenna -R180-
   • Refer to RADIO DATA TRANSMISSION ANTENNA -R180-, REMOVING AND INSTALLING  .
3. Front Roof Module -WX3-
   • Depending on equipment/version
   • With a Telephone Microphone -R38-
   • With Emergency Call Button -E276-
   • Can only be replaced with Front Roof Module - WX3-
   • Refer to FRONT ROOF MODULE WX3, REMOVING AND INSTALLING .
4. Right Front Bass Speaker -R23-
   • Refer to Bass speaker, Removing and Installing  .
5. Right Rear Wideband Speaker -R386-
   • Refer to Bass speaker, Removing and Installing  .
6. Control Module for Emergency Call Module and Communication Unit -J949-
   • With Telematics Emergency Battery -A16-
   • Refer to TELEMATICS EMERGENCY BATTERY A16, REMOVING AND INSTALLING  .
   • Refer to Emergency Call Module Speaker R335, Removing and Installing  .
7. Left Rear Wideband Speaker -R385-
   • Refer to Bass speaker, Removing and Installing  .
8. USB Charging Socket 1 -U37-
   • Refer to USB Charging Socket 1 -U37-, Removing and Installing
9. USB Connection 1 -U41-
   • Refer to USB Connection 1 U41, Removing and Installing  .
10. Telephone Baseplate -R126-
    • Refer to the appropriate Service Information .
11. Left Front Bass Speaker -R21-
    • Refer to Bass speaker, Removing and Installing  .
12. Multifunction Steering Wheel
    • Depending on equipment/version
    • With Left Multifunction Buttons on Steering Wheel -E440- with Multifunction Steering Wheel Control Module -J453-.
    • With Right Multifunction Buttons on Steering Wheel -E441-
    • With Steering Wheel Touch Recognition Control Module -J1158-
    • Refer to Overview - Multifunction Steering Wheel  .
    • Refer to LEFT/RIGHT MULTIFUNCTION BUTTONS ON STEERING WHEEL E440 / E441, REMOVING AND INSTALLING  .
    • Refer to Steering Wheel Touch Recognition Control Module J1158, Removing and Installing  .
13. Left Front Treble Speaker -R20-
    • Refer to Left and Right Front Treble Speaker R20/R22, Removing and Installing  .
14. Center Speaker
    • With Emergency Call Module Speaker -R335-
    • Refer to Emergency Call Module Speaker R335, Removing and Installing  .
15. Information Electronics Control Module 1 -J794-
    • Refer to Information Electronics Control Module 1 J794, Removing and Installing  .
    • Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 J794, BRACKET, REMOVING AND INSTALLING
16. Front Information Display Control Head -J685-
    • Refer to Front Information Display Control Head Control Module -J685-, Removing and Installing  .
