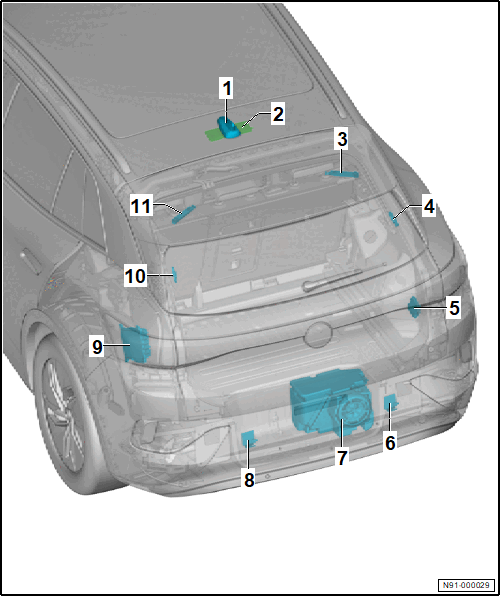

Component Location Overview - Components/Control Modules In Rear Section Of Vehicle

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Roof Antenna -RX5-
   • Depending on equipment/version
   • With Antenna for External Communication with Vehicle -R387-
   • With GPS Antenna -R50-
   • With LTE Antenna 1 -R297-
   • Refer to Roof Antenna -RX5-, Removing and Installing
2. Internet Access Control Module -J666-
   • Refer to INTERNET ACCESS CONTROL MODULE J666, REMOVING AND INSTALLING  .
3. Radio Antenna 2 -R93-
   • Refer to Antenna Module, Removing and Installing
4. FM Frequency Filter in Negative Wire -R178-
   • Refer to FM Frequency Filter in Negative Wire -R178- / FM Frequency Filter in Positive Wire -R179-, Removing and Installing  .
5. Cellular Telephone Amplifier -R86-
   • Refer to Cellular Telephone Amplifier R86, Removing and Installing  .
6. LTE Antenna 2 -R306-
   • Refer to LTE Antenna, Removing and Installing  .
7. Subwoofer -R211-
   • Depending on equipment/version
   • Refer to Subwoofer R211, Removing and Installing  .
8. LTE Antenna 1 -R297-
   • Depending on equipment/version
   • Refer to LTE Antenna, Removing and Installing  .
9. Digital Sound System Control Module -J525-
   • Depending on equipment/version
   • Refer to Digital Sound System Control Module J525, Removing and Installing
10. FM Frequency Filter in Positive Wire -R179-
    • Refer to FM Frequency Filter in Negative Wire -R178- / FM Frequency Filter in Positive Wire -R179-, Removing and Installing  .
11. Antenna - R11- /Antenna Amplifier - R24-
    • Refer to Antenna Module, Removing and Installing
