Antenna Module, Removing And Installing: Removing

The Radio Antenna 2 -R93-, Antenna -R11- and the Digital Radio Antenna -R183- will be called antenna module in the information that follows.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

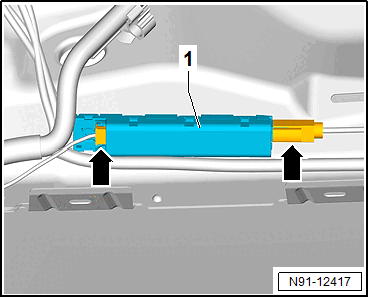

-- Disconnect the connectors -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

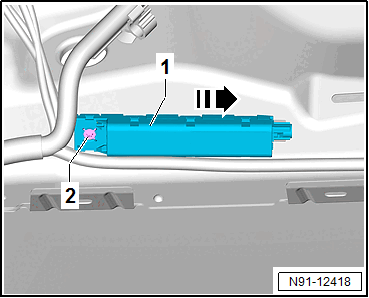

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the antenna module -1- in the direction of -arrow-.
