Control Module For Emergency Call Module And Communication Unit -J949-, Removing And Installing, Rear Bench Seat: Removing

The Control Module for Emergency Call Module and Communication Unit -J949- will be called control module in the information that follows.

If the Control Module Is Replaced, the Test Plan for Replacing the Control Module Must Be Performed.

-- Perform the function "Emergency call control module, replacing" using the => . Refer to Diagnostic Entries .

Continuation

-- Bench Seat/Individual Seats, Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Loosen the rear sill panel. Refer to REAR SILL PANEL, REMOVING AND INSTALLING .

-- Fold the carpet forward until the control module is accessible. Refer to CARPET, REMOVING AND INSTALLING .

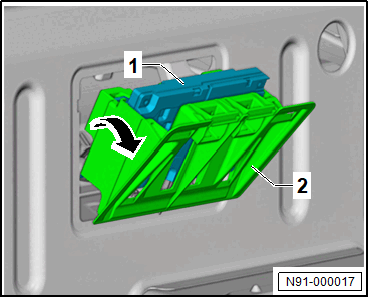

-- Pivot out the bracket -2- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

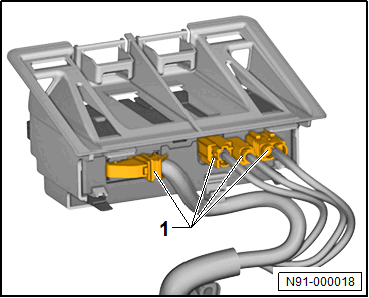

-- Disconnect the connectors -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

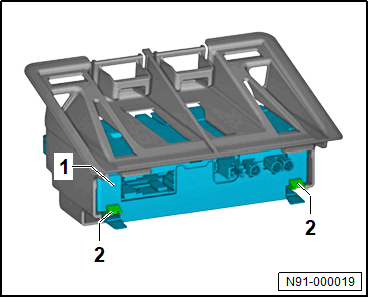

-- Release the hook -2- and remove the control module -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
