Digital Sound System Control Module J525, Removing And Installing: Removing

The Digital Sound System Control Module -J525- will be called digital sound system control module in the information that follows.

If the Digital Sound System Control Module Is Replaced, Perform the Test Plan for Replacing the Control Module.

-- Perform the function "Digital sound system control module, replacing" using the => . Refer to Diagnostic Entries .

Continuation

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

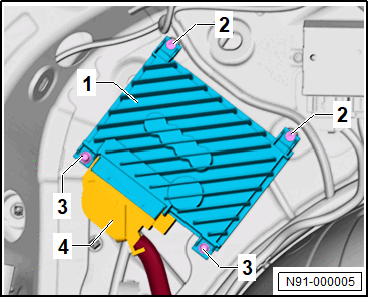

-- Disconnect the connector -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2-.

-- Remove the nuts -3-.

-- Remove the digital sound system control module -1-.
