Steering Wheel Touch Recognition Control Module J1158, Removing And Installing: Removing

-- Remove the airbag unit with the Driver Airbag Igniter -N95-. Refer to AIRBAG UNIT WITH DRIVER AIRBAG IGNITER N95, REMOVING AND INSTALLING .

-- Remove the lower decorative trim. Refer to LEFT/RIGHT MULTIFUNCTION BUTTONS ON STEERING WHEEL E440 / E441, REMOVING AND INSTALLING  .

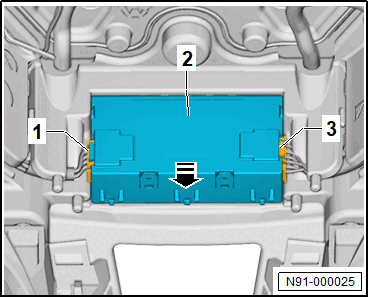

-- Disconnect the connectors -1 and 3-.

GWWN91-000025Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control module -2- in direction of -arrow-.
