Peripheral Camera Control Module J928, Removing And Installing: Removing

If the Control Module Is Replaced, the Test Plan for Replacing the Control Module Must Be Performed.

-- Perform the function "peripheral camera control module, replacing" using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the seat pan. Refer to SEAT PAN, REMOVING AND INSTALLING .

-- Disconnect the connectors.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

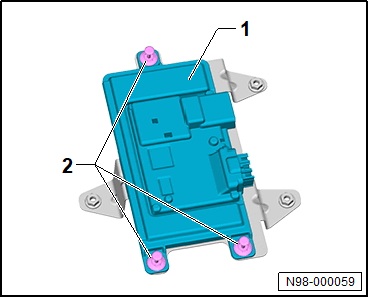

-- Loosen the expanding rivets -2- and remove the control module -1-.

-- Remove the Peripheral Camera Control Module - J928-. Refer to Peripheral Camera Control Module J928, Removing and Installing  .

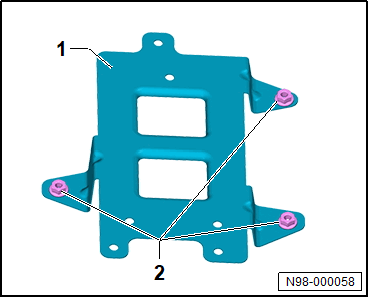

-- Remove the nuts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket.
