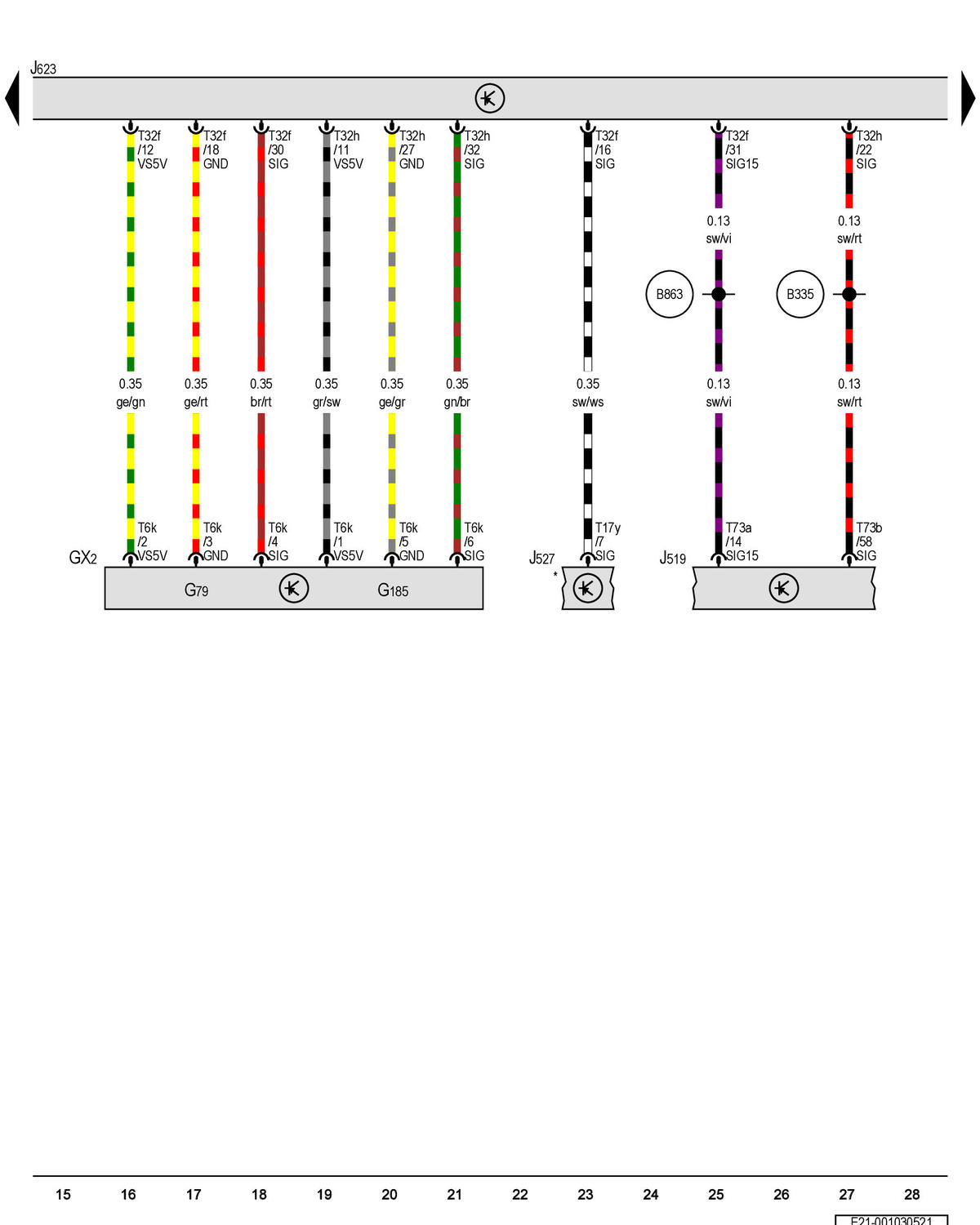

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX2

Accelerator Pedal Module Type:BT, Slpdok:, Aim:BTGX2

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

J527

Steering Column Electronics Control Module Type:BT, Slpdok:, Aim:BTJ527

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T6k

6-Pin Connector, Black

T17y

17-Pin Connector, Yellow Type:VA, Slpdok:, Aim:VAT17y

T32f

32-Pin Connector, Gray Type:VA, Slpdok:, Aim:VAT32f

T32h

32-Pin Connector, Blue Type:VA, Slpdok:, Aim:VAT32h

T73a

73-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT73a Type:VA, Slpdok:, Aim:VAT73a

T73b

73-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT73b Type:VA, Slpdok:, Aim:VAT73b

B335

Connection 54 (in Main Wiring Harness) 1

B863

Connection 30 (in Steering Wheel Wiring Harness)

*

Refer to Applicable Steering Column Electronics Wiring Diagram
