Window Guide, Removing And Installing: Installing

CAUTION:

Uneven seat and position depending on the installation of the window guide.

Wind noise possible.

- When aligning and installing pay attention to the uneven seating and position.

-- Spray the window guide with soapy water to make it easier to install.

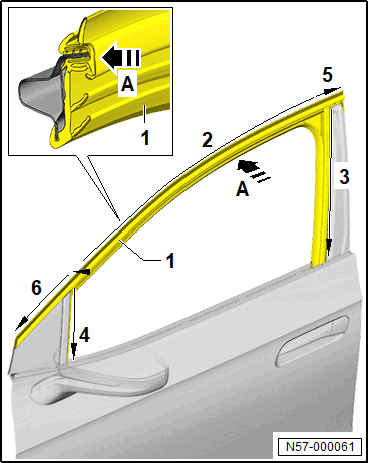

-- Slide the window guide -1- in areas -3- and -4- into the mounts on the door.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the window guide -1- in the upper area of the B-pillar -5-.

-- Install the B-pillar trim on the front door. Refer to FRONT DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Align the window guide -1- with the front door B-pillar trim.

-- Position the window guide -1- in area -2- in the -direction of the arrow A- and press it on evenly, starting at the B-pillar.

-- Press the window guide -1- on in area -6- behind the fixed front door window.

-- Engage the fixed front door window at the upper clip. Refer to Fixed Front Door Window, Removing and Installing .

-- Press the window guide -1- on in areas -3- and -4-.

Further installation is performed in reverse order of the removal.
